Specifications

Specification:

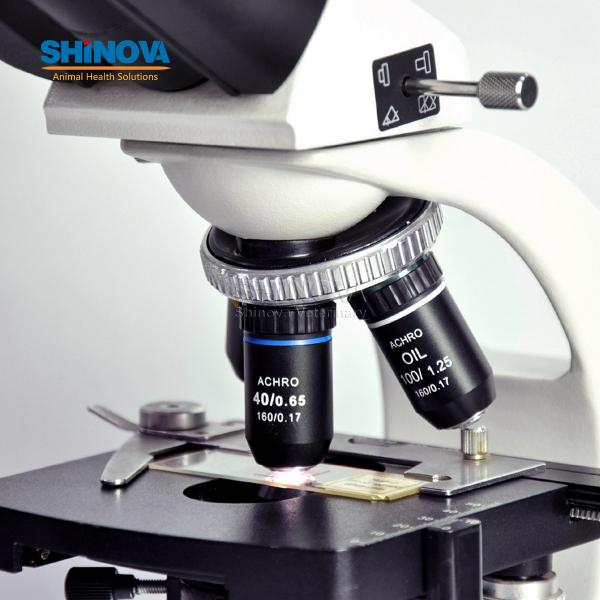

45mm DIN achromatic objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide field plan-scope eyepiece: WF10X(optional: WF16X); total magnification: 40X-1600X

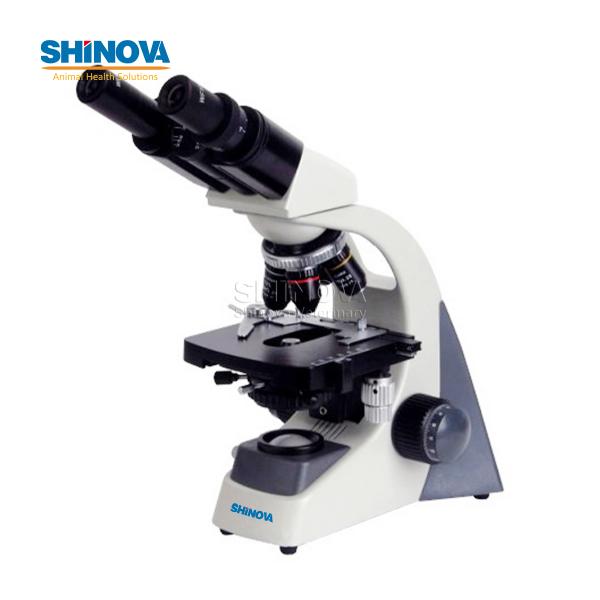

Sliding binocular head, interpupillary distance: 55-75mm: 45" inclined, 360" rotatable

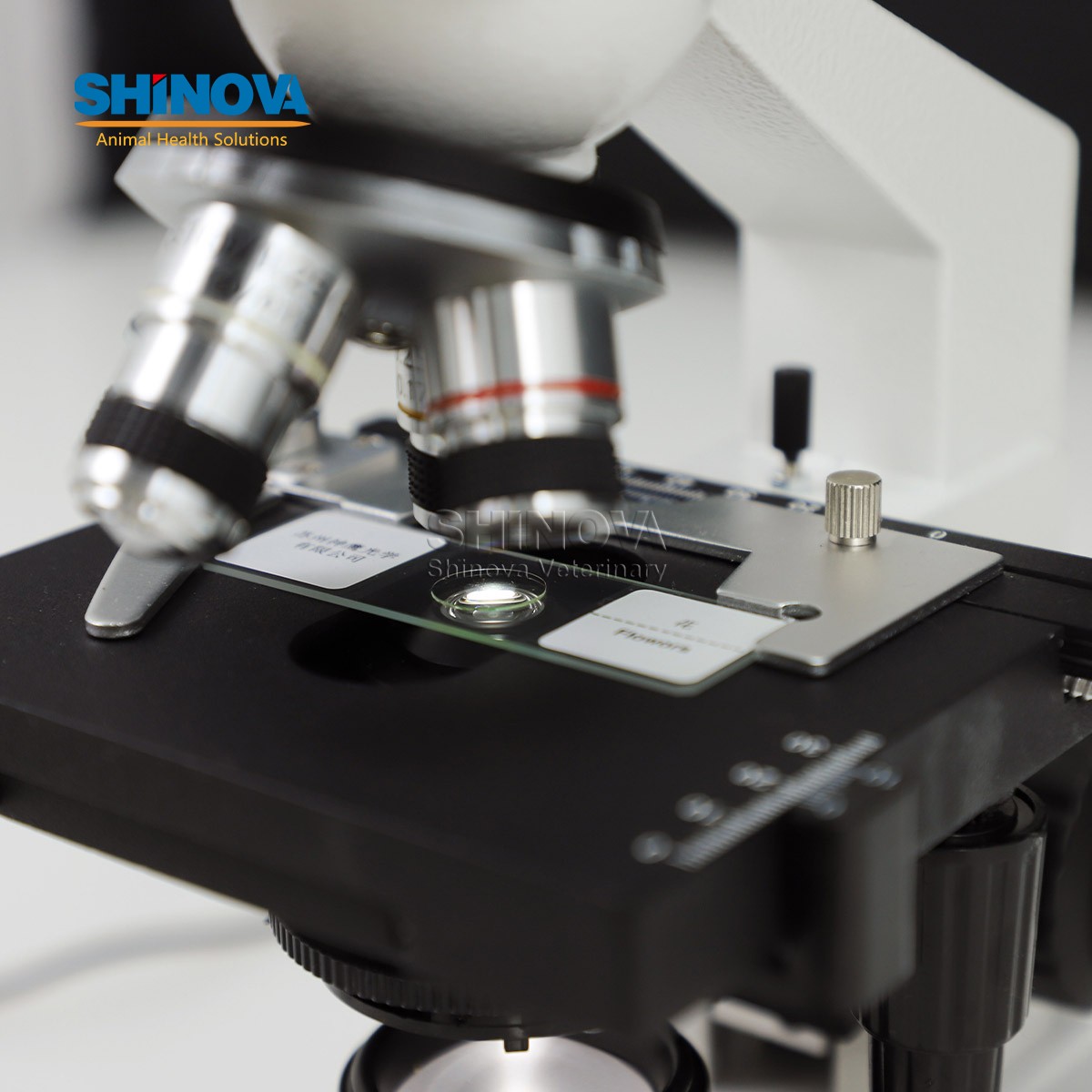

Double layers mechanical stage: 140X155mm, moving range X-Y: 70X50m

ф2-ф30mm lris diaphragm and ф32 filter: ABBE condenser: N.A.1.25

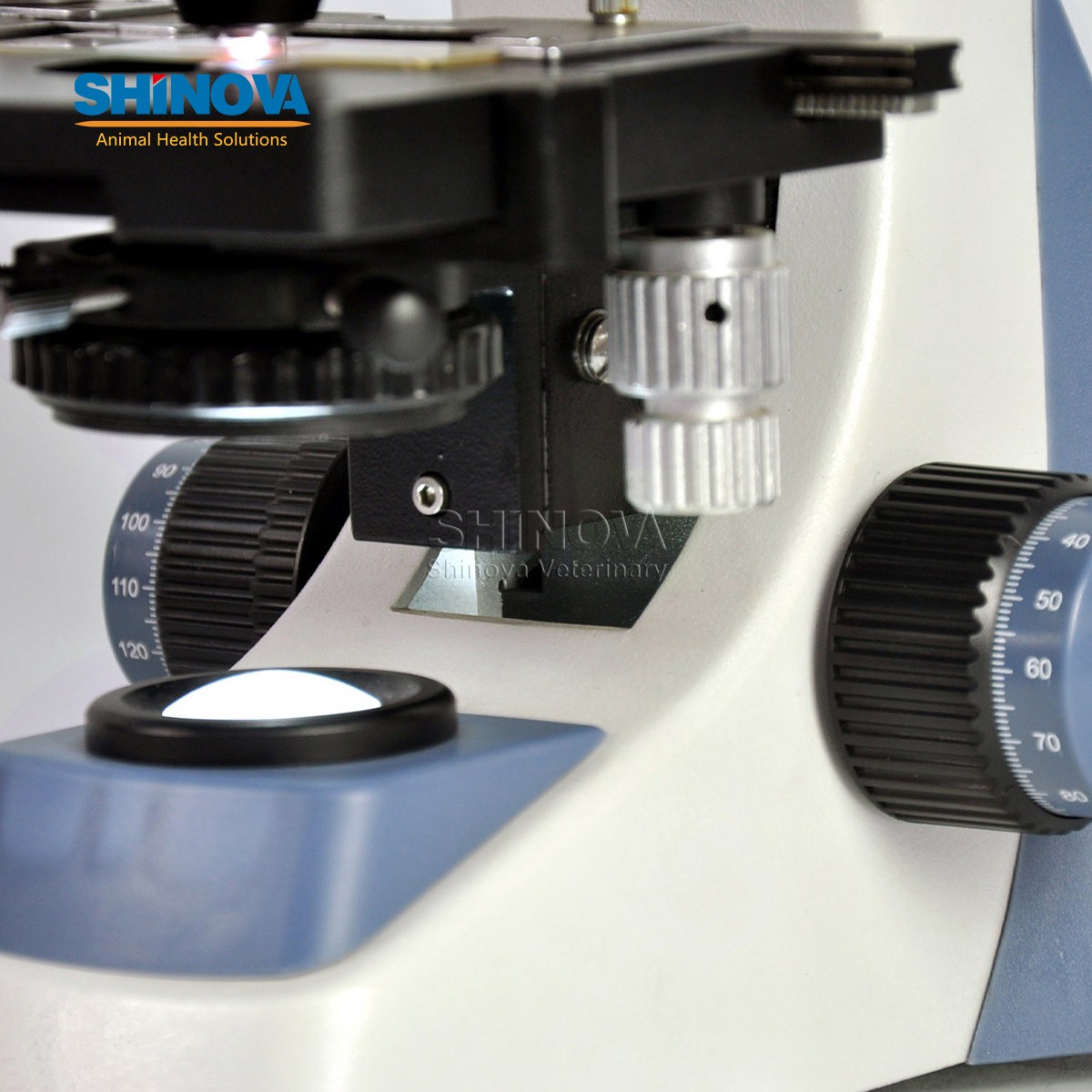

Coaxial coarse and fine focusing adjustable mechanism: 25mm, precision: 0.002mm

Built-in illumination optional: halogen lamp 6V/20W, incadescent lamp 15W, LED lamp 1W, LED lamp with rechargeable device

Net Weight/Set: 6.4kg

Gross Weight/Carton: 11kg

Package: 1 set/wood cabinet/carton 38X34X50cm
