Descriptions
Feature:

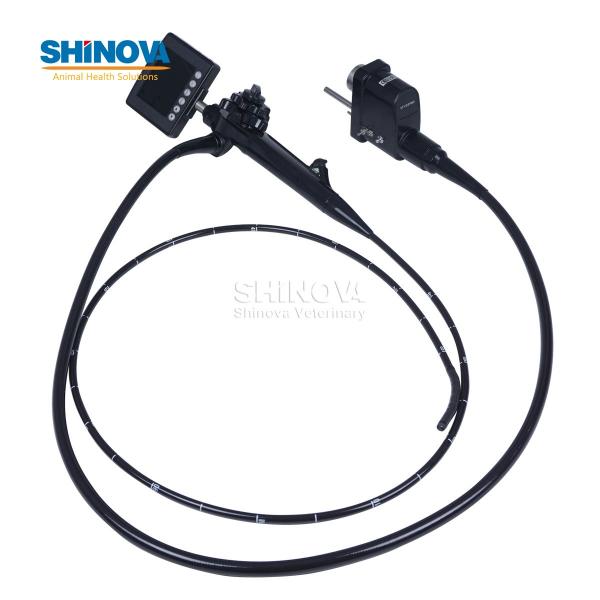

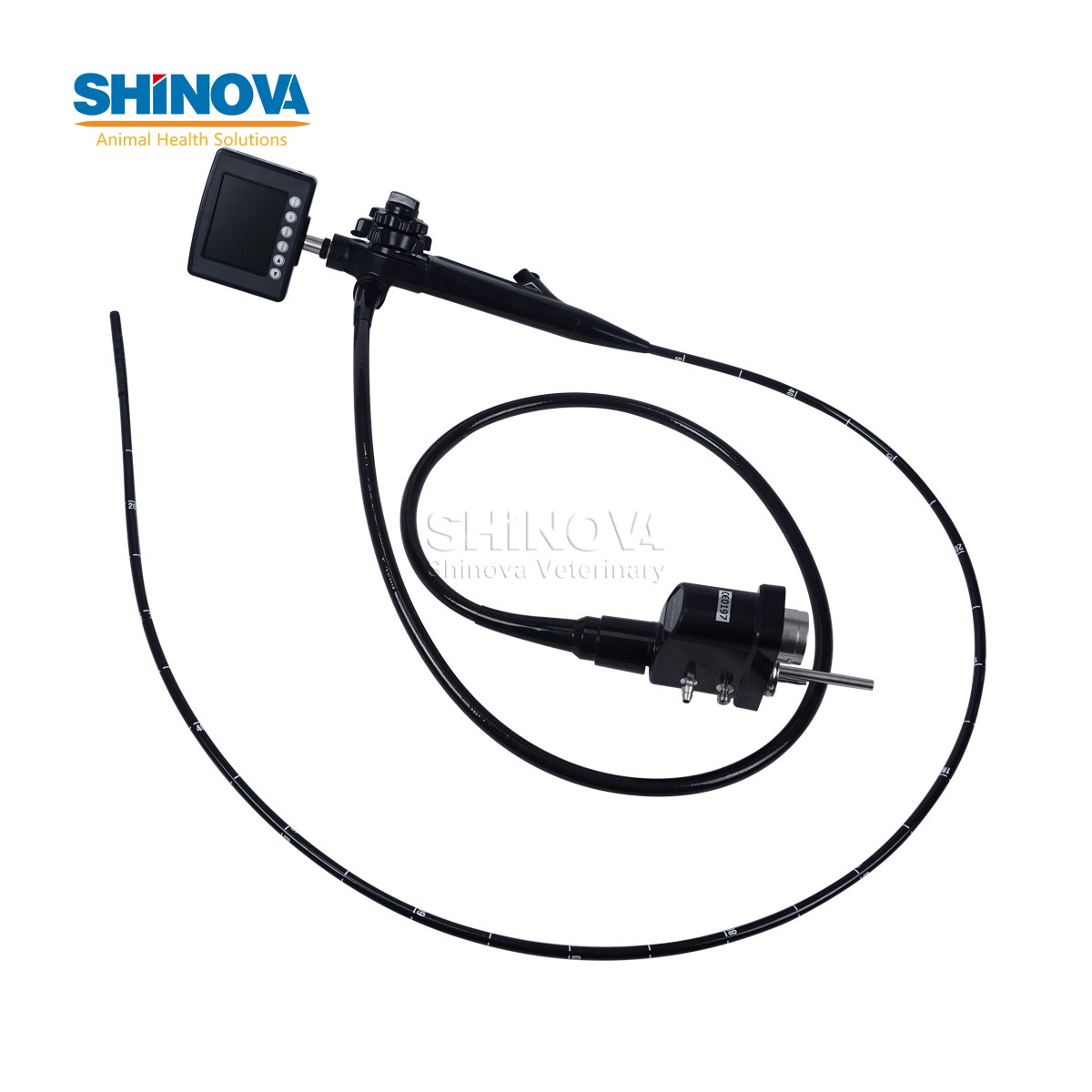

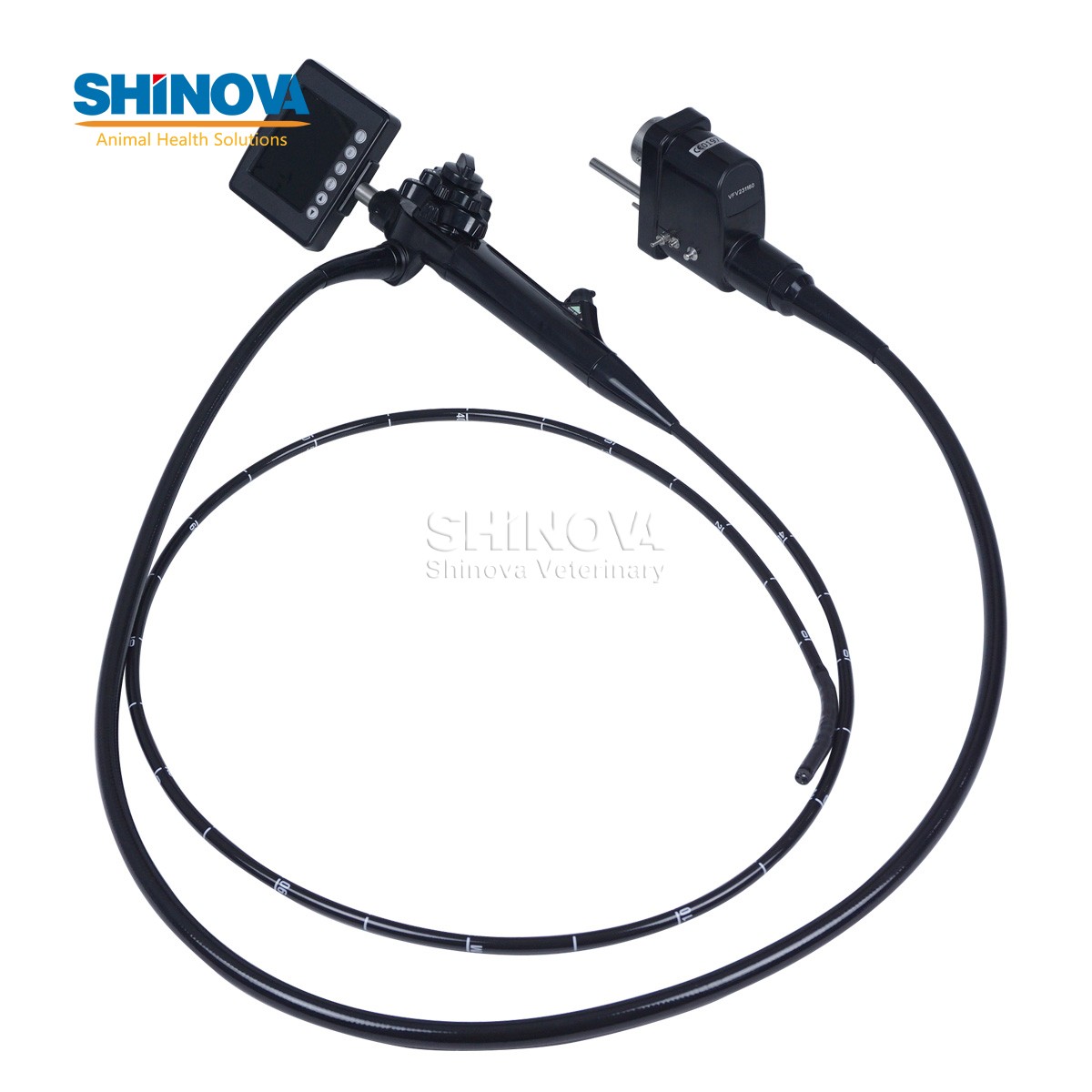

Portable design – 3.5 inches LCD Monitor
Portable veterinary endoscope adopts the expanded viewing and recording capability. It enables observation without cables or peripherals, providing with a level of mobility that allows it be operated almost anywhere.
Excellent optical system
High definition image: High-definition CMOS camera adopts the 990K pixels. It can capture high quality images.
Wider field of view technology can provide excellent and detailed images.
Large range angulations make it easier to observation.
3-100mm depth of view provides precise observation ability for both close and far objects.
Wider instrument channel
It is easier to operate that a wide range of instruments can be used with the 2.0mm~3.2mm diameter channel.
Specifications
Model
View of Field
Depth of View
Working Length
Diameter of Insertion Tube
Diameter of Instrumental Channel
Range of Tip Bending
Gastrix 85V
120°
3-100mm
1500mm
8.5mm
2.0mm
210°(U),90°(D),
100°(R),100°(L)
Gastrix 92V
140°
3-100mm
1500mm
9.0mm
2.8mm
210°(U),90°(D),
100°(R),100°(L)
Colonix 98V
140°
3-100mm
3000mm
9.6mm
2.8mm
210°(U),90°(D),
100°(R),100°(L)
Colonix 130V
140°
3-100mm
3000mm
12.8mm
3.7mm
180°(U),180°(D),
160°(R),160°(L)
Colonix 135V
140°
3-100mm
3500mm
12.8mm
3.7mm
180°(U),180°(D),
160°(R),160°(L)
Gastrix 60V
120°
3-60mm
1000mm
5.8mm
2.0mm
180°(U),160°(D)
Configurations
Standard:
Veterinary endoscope, Image processor with light source VIS-1200HD, 3.5” LCD, Accessories: Biopsy forceps (2pcs), Cleaning brush (2pcs), Leakage tester & Water-resistant cap (1pc), Spare suction / air water valves set (1pc), Water bottle (1pc), Biopsy cap (3pcs), Cleaning kits (1pc), Cleaning cap (1pc), Plug information card (1pc), Instruction manual (1pc), Carrying case (1pc).
Optional:

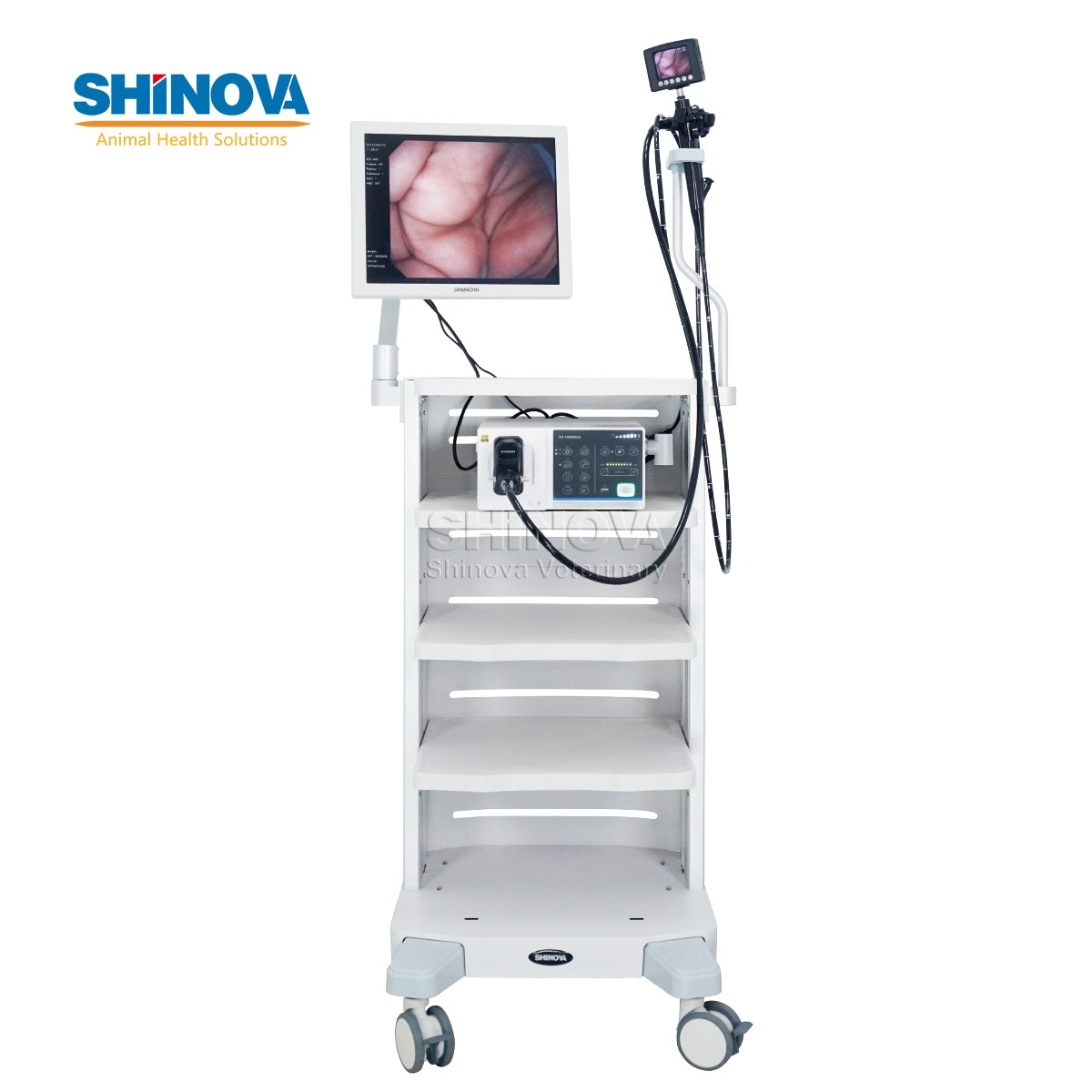

Imaging Processor with light source and battery VIS-1200HD(Li), LCD Monitor, Trolley, Autoclavable Grasping Forceps
