Descriptions

Features:

High-definition CMOS camera captures high quality endoscopy images.

Field of view technology provides excellent and detailed images.

Large range angulations make it easier to observation.

3-100mm depth of view provides precise observation ability for both close and far objects.

3.7mm working channel makes it easier to pass through all kind of instruments for animal treatment.

21.5" medical monitor provides high-definition image quality.

Video processor is updatable to form multifunctional endoscopy examinations such as gastroscopy, bronchoscopy, laparoscopy, etc.

Wider clinical applications for gastroscopy, colonoscopy in small animals like dogs and cats, and for bronchoscopy, rhinoscopy, pharynogoscopy and laryngoscopy in large animals like horses and cattle.

Specifications

Specifications:

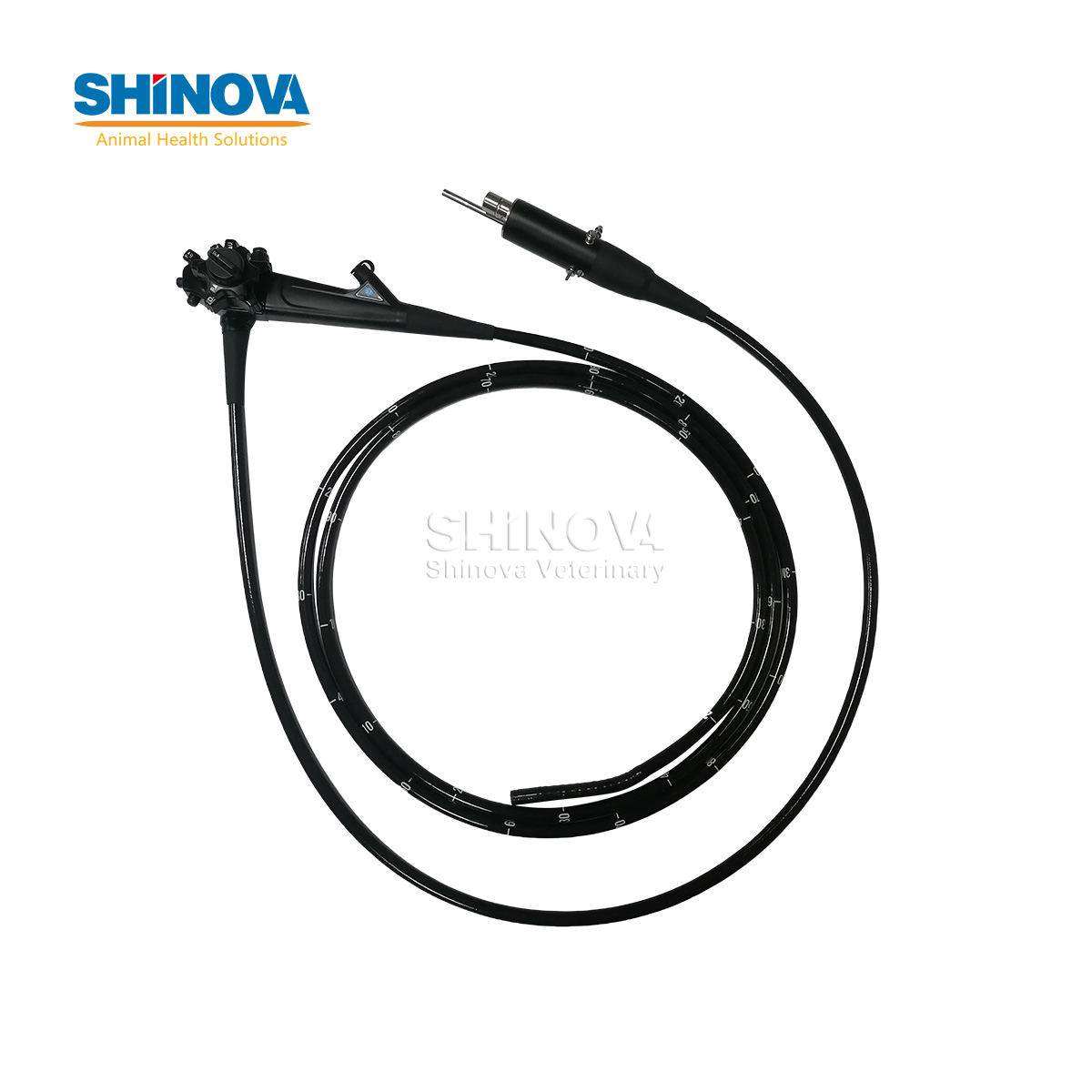

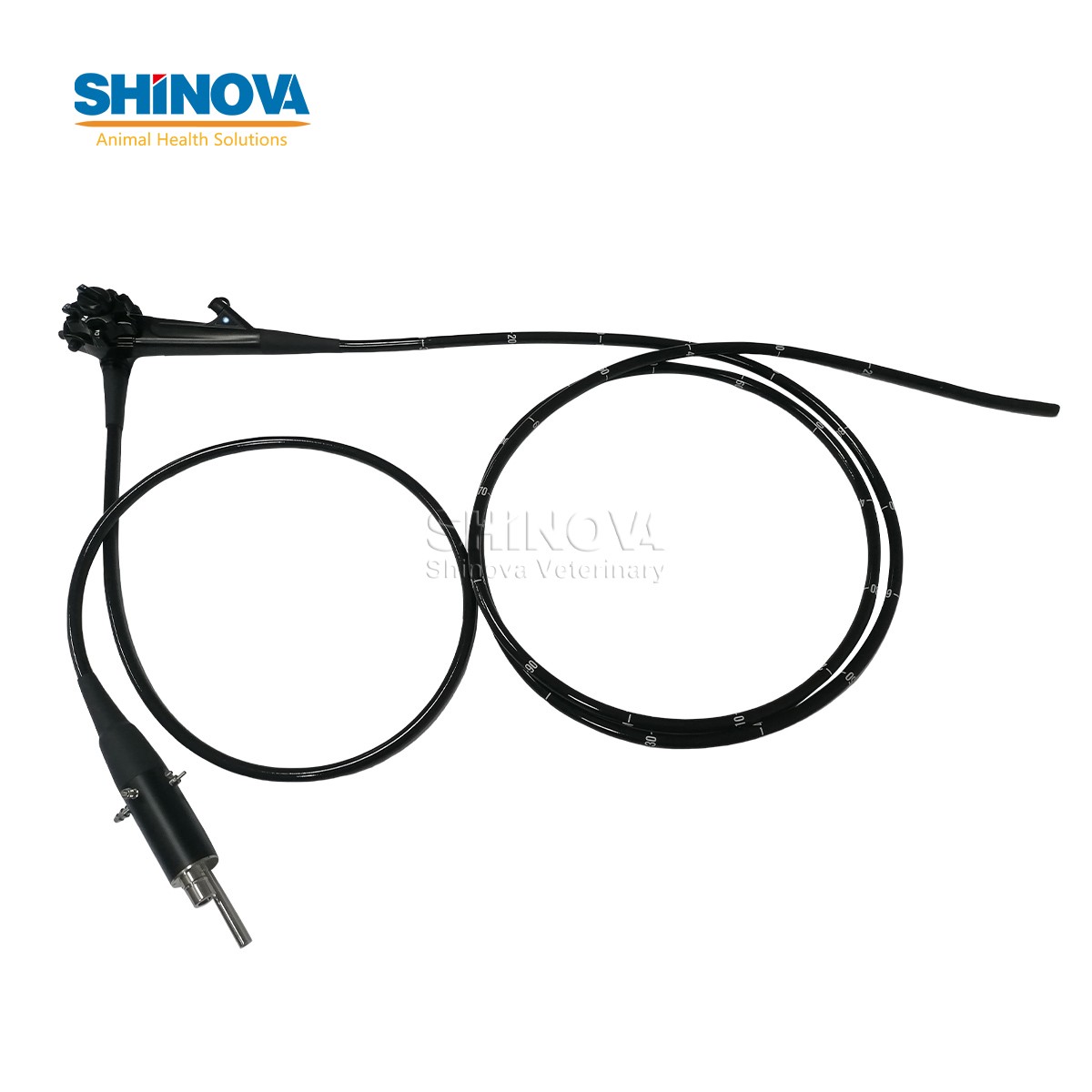

l  Endoscope (VE-1233)

Working length: 3300mm

Outer diameter: 12.9mm

Working channel: 3.7mm

Bending range: U180°, D180°, R160°, L160°

Applications: For ≥80kg large animal’s gastroscopy (horses, cattle and other large animals)

VE-1233W: It supports auxiliary water inlet.

l  Video Processor (VIS-300G)

Light Source: 80W LED

Luminance: ≥1000Lm

Service Life: ≥20,000hours

Air Pressure: 0.05MPa

Flow Rate: 0.75M³/N

White Balance: Automatic

Recording: 64G TF card for photo/video

Imaging Output: HDMI/DVI, 1080P

Voltage: 100-240V, 50-60Hz

Application: 1-function (Gastroscopy)

Configurations

Standard Configuration:

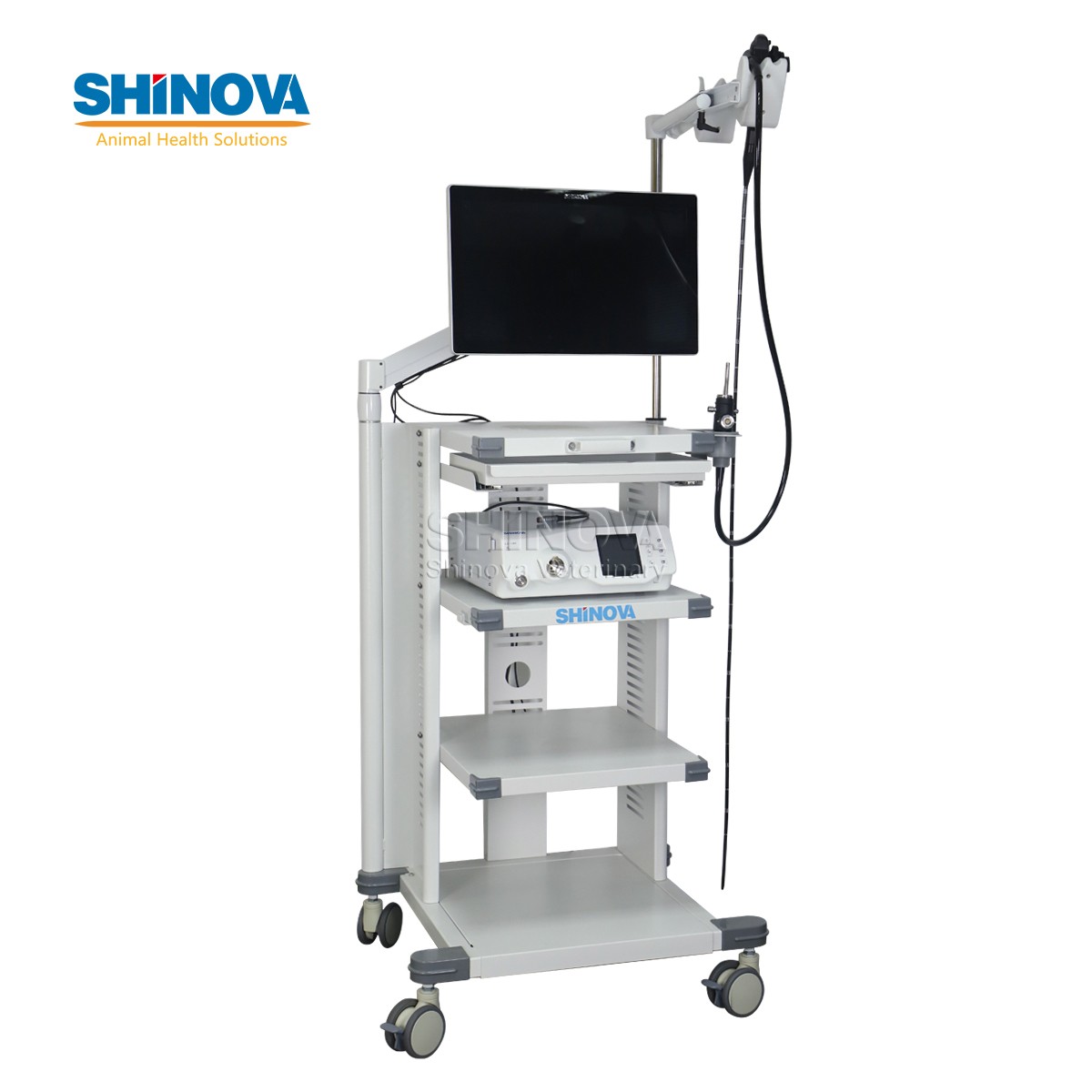

Endoscope (VE-1233), image processor (VIS-300G), 21.5" medical monitor (M210), trolley (EndoCart-6), maintenance tools, carrying case, etc.

Optional Configuration:

Video processor with light source VIS-300, VIS-300M or VIS-310, disposable grasping forceps, disposable biopsy forceps, disposable electric snare, disposable endoscopic retriever, disposable stone basket, disposable injection needle, disposable spray tube, etc.
