Descriptions
Feature:

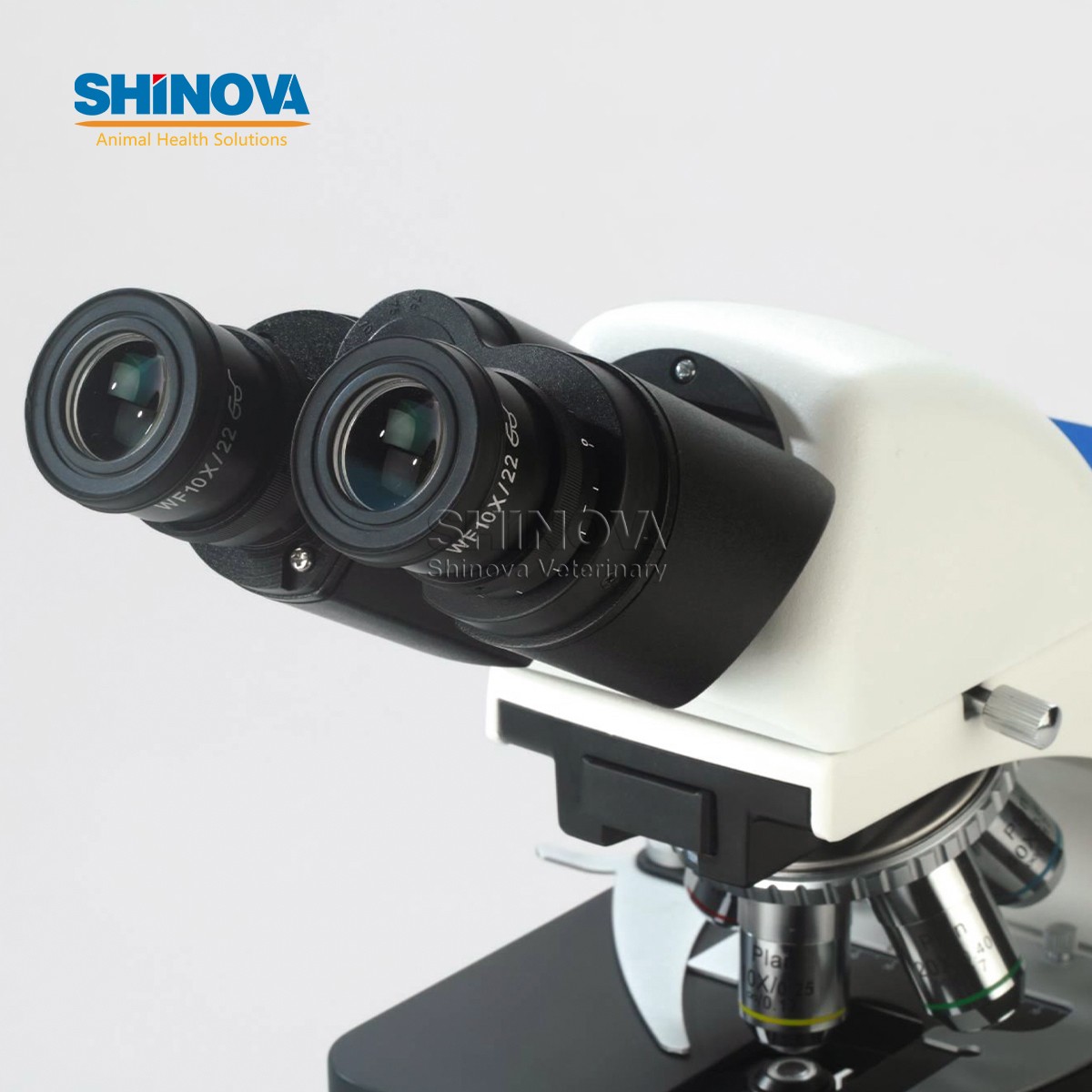

Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

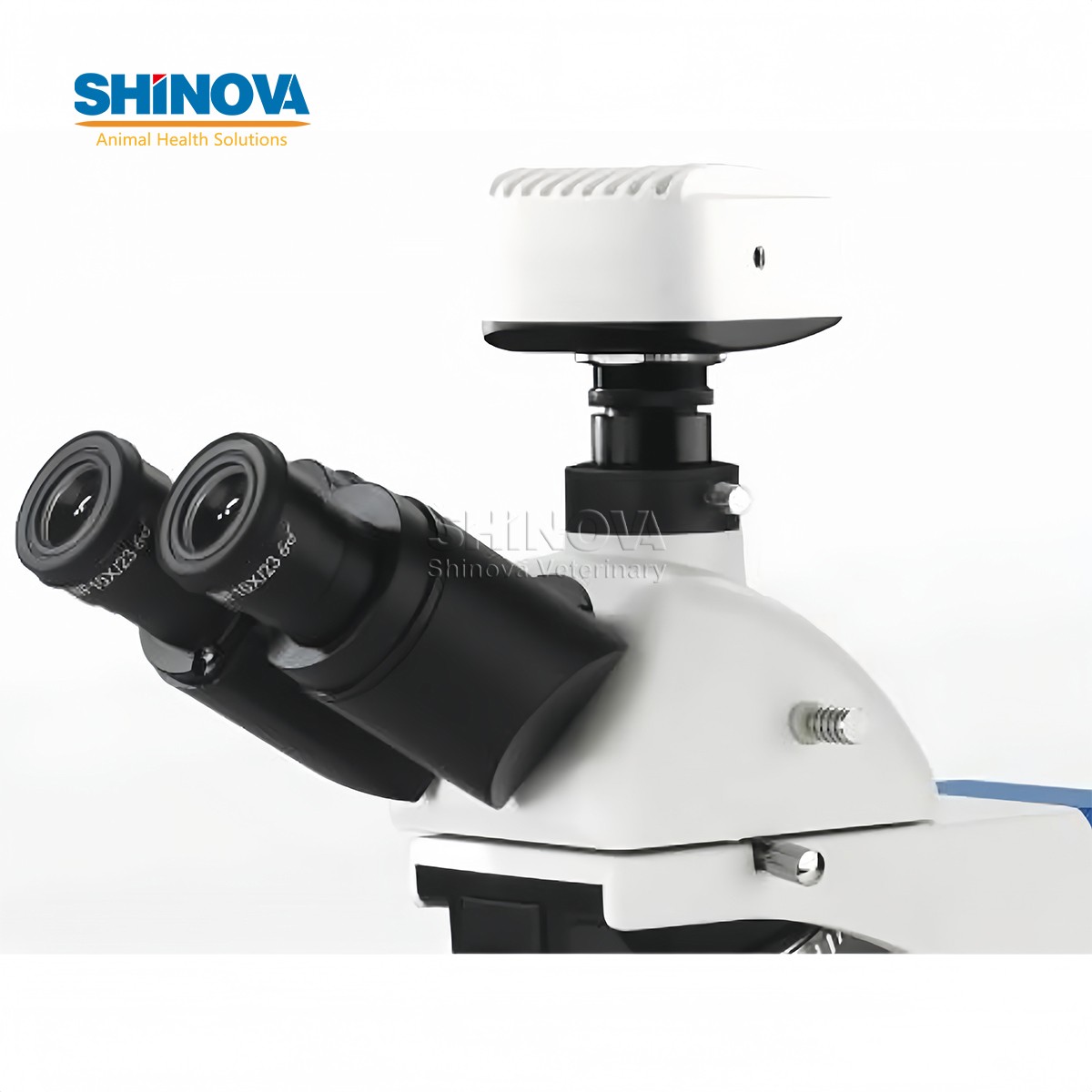

Trinocular observing tube with dual transform.
Integrated stage is safer than traditional stage.
Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast observation.
N.A.0.9/0.13 swing-out condenser.
Dark field condenser NA0.83-0.91 (dry)available to 4X-40X objective.
Dark field condenser NA>1.30 (wet) available to 100X objective.
Infinity plan objectives.
Six-holes disk fluorescence unit, more fluorescence filters can be supplied.
F03 fluorescence unit for 1/2 pcs fluorescence filters.
Polarizer, analyzer for simple polarizing unit.
Specifications
Specification:
Packing size: 520mm×475mm×285mmGross weight: 12 kgs
Net weight: 10kgs
Configurations
Standard configuration:
Eyepiece: WF10×/22mm (diopter adjustable)Infinity plan objectives: PLAN 4×/0.11 W.D.=12.10mm
PLAN 10×/0.25 W.D.=4.64mm
PLAN 20×/0.40 (S) W.D.=2.41mm
PLAN 40×/0.66 (S) W.D.=0.65mm
PLAN 100×/1.25 (S, Oil) W.D.=0.12mm
Seidentopf trinocular head: Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm
light distribution (both): 100:0 (100% for eyepiece)
80:20 (80% for trinocular head and 20% for eyepiece)
Nosepiece: quintuple

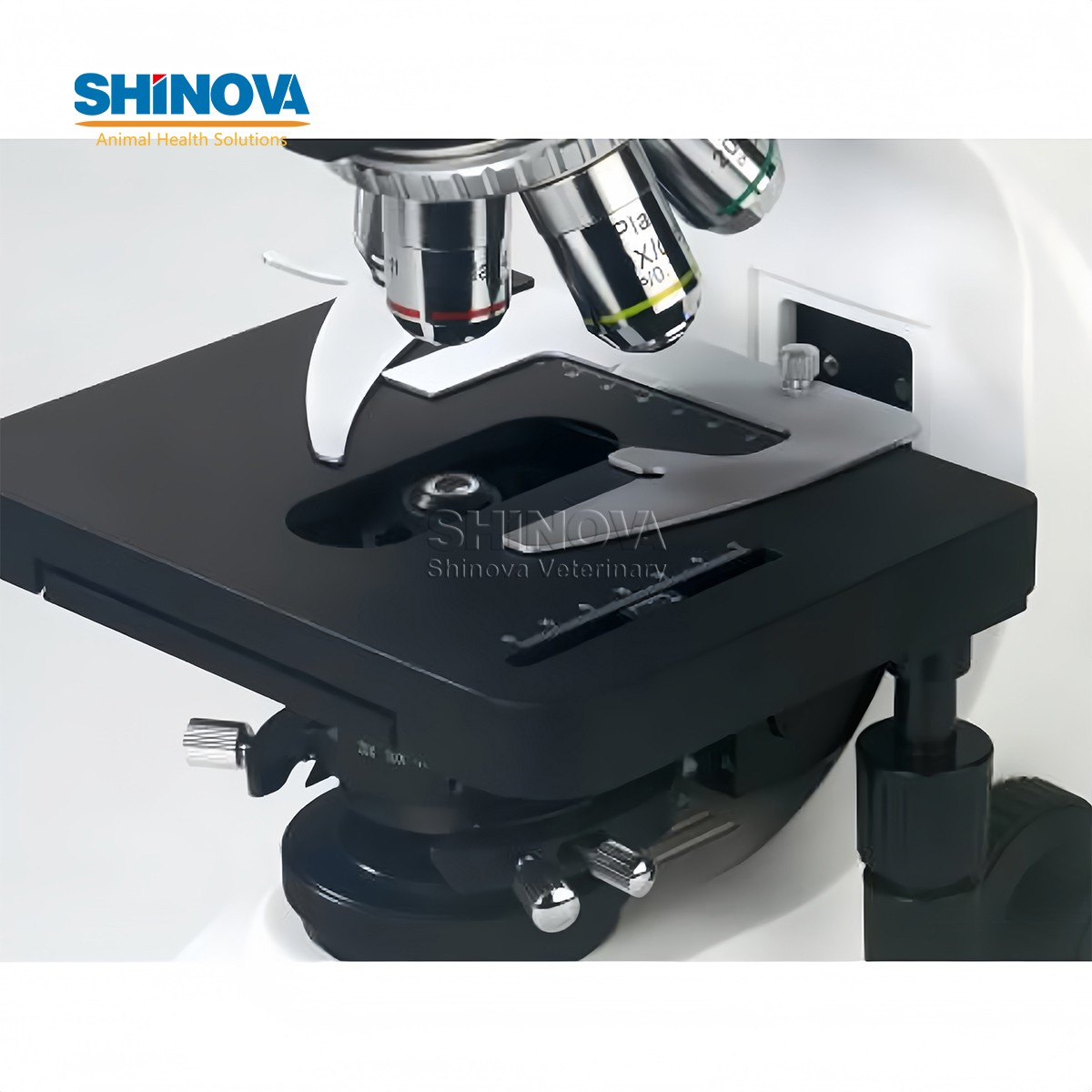

Mechanical stage: integrated stage
stage size: 182 mm×140mm, travel range: 77mm×52mm
two-slide holder
Swing out condenser: N.A. 0.9/0.13, Swing out with iris diaphragm
Koehler illumination: 12V/30W Halogen Lamp
wide voltage input: 100V～240V
field diaphragm, center adjustable
Filter: blue
Optional configuration:
Eyepiece: WF15X/16mm (diopter adjustable)WF20X/12mm (diopter adjustable)
Infinity plan objectives: PLAN 2×/0.06 W.D.=7.2mm
PLAN 60×/0.80 (S) W.D.=0.33mm
PLAN 100×/1.15 (S, W) W.D.=0.19mm
Infinity plan semi apochromatic objective: UPlanFLN 10X/0.30 W.D.=7.68mm
UPlanFLN 20X/0.50 W.D.=1.96mm
UPlanFLN 40X/0.75 W.D.=0.78mm
UPlanFLN 100X/1.30 (Oil) W.D.=0.15mm
LED Illumination: 5W LED (DC input)
wide voltage input: 100V～240V
field diaphragm, center adjustable
Filter: green /amber /grey
C-mount: 1×/0.35X/0.5×/0.75× C-mount (focus adjustable)
Fluorescence attachment: Epi fluorescence unit (six-hole disc media which can be fixed with Uv /V/B/G and another filters) , 100W mercury lamp
Epi fluorescence unit (six-hole disc media which can be fixed Uv /V/B/G) , LED fluorescence lamp
F03 fluorescence unit for 1/2pcs fluorescence filters (which can fixed with Uv /V/B/G and another filters) , 5W-LED fluorescence lamp
Phase contrast unit: quintuple hole turret
10× /20× /40× /100× phase contrast objective
independent slot
10× /20× /40× /100× phase contrast objective
Dark field unit: dark field condenser (dry), apply to 4×- 40× objective
dark field condenser (wet), apply to 100× objective
Polarizing attachment: analyzer / polarizer
