Descriptions

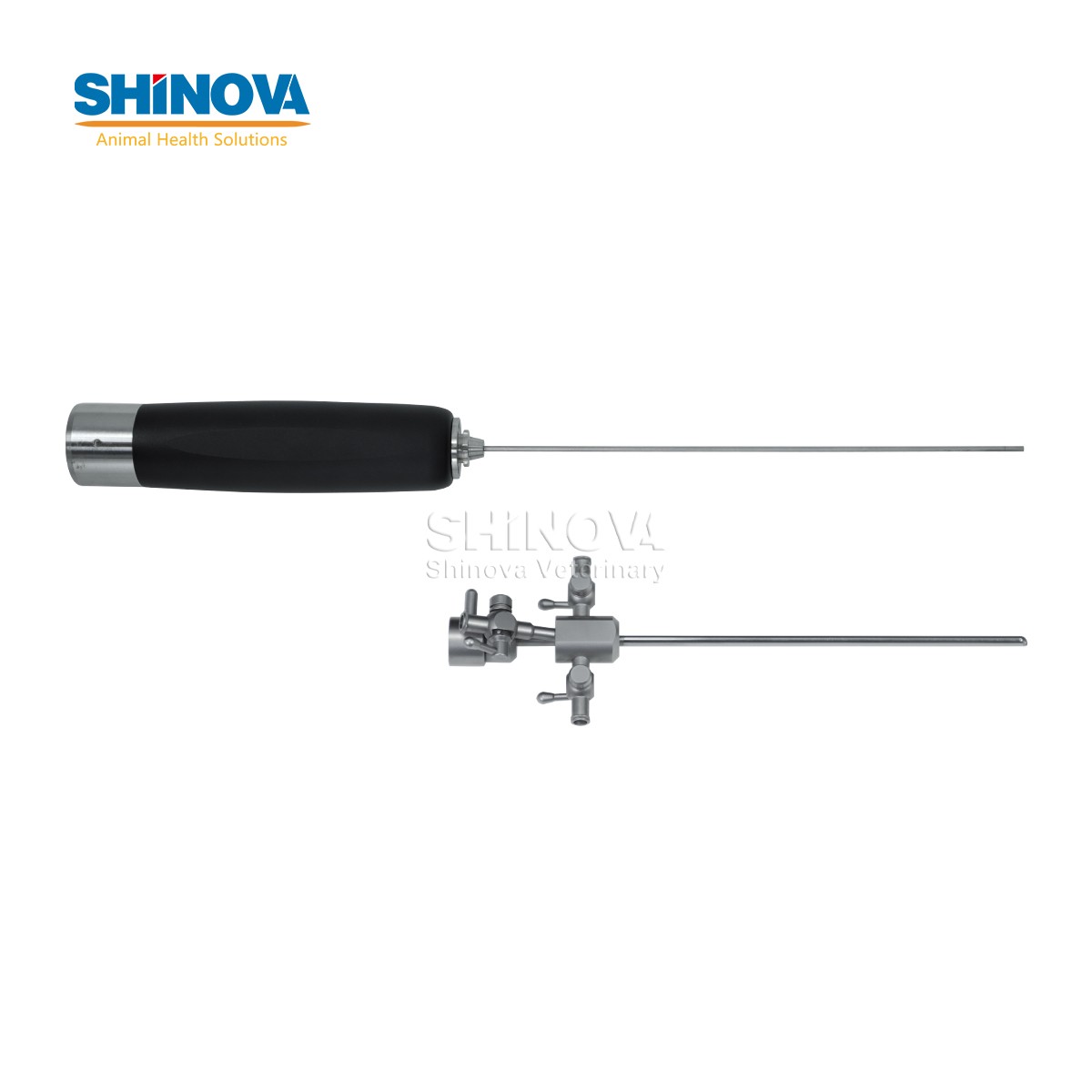

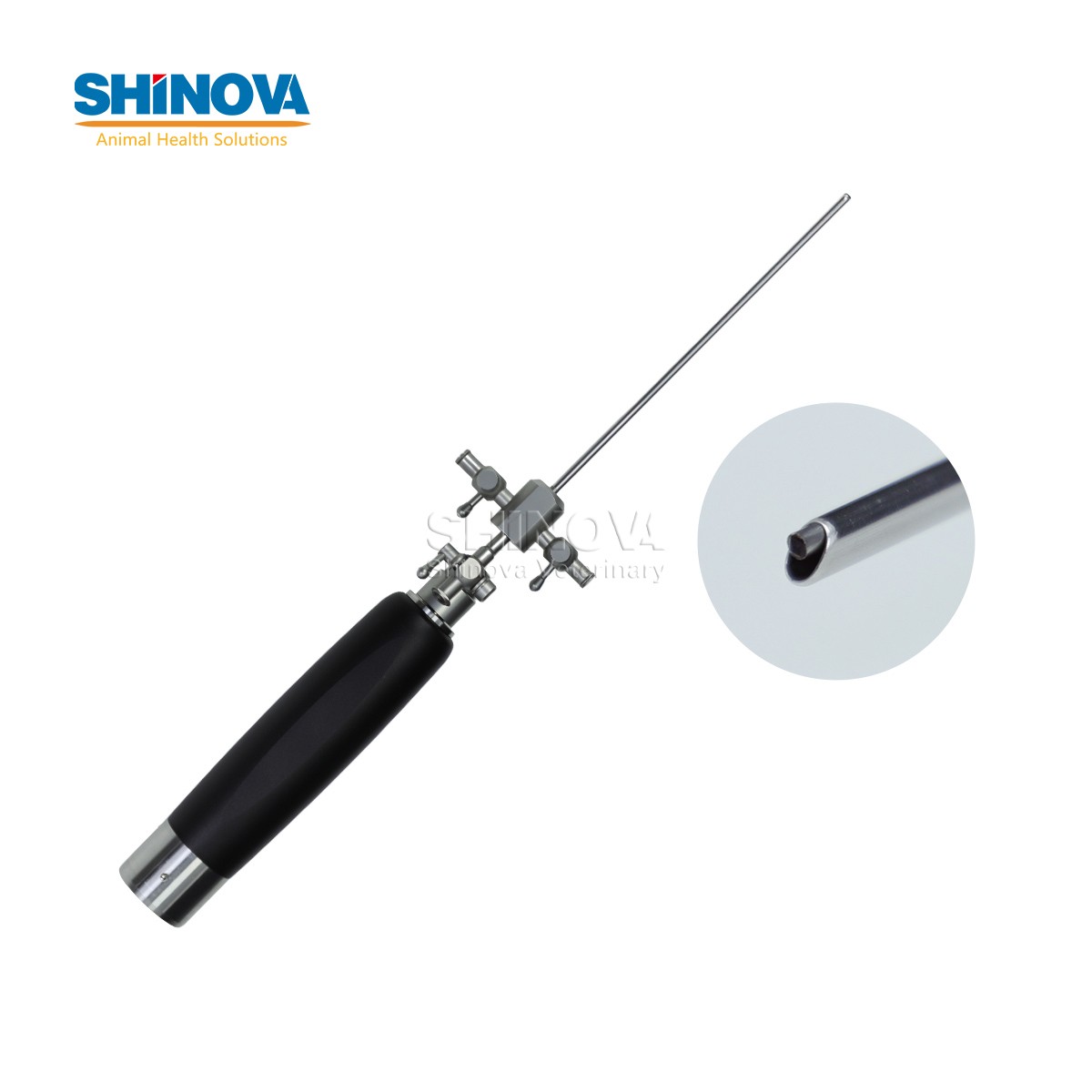

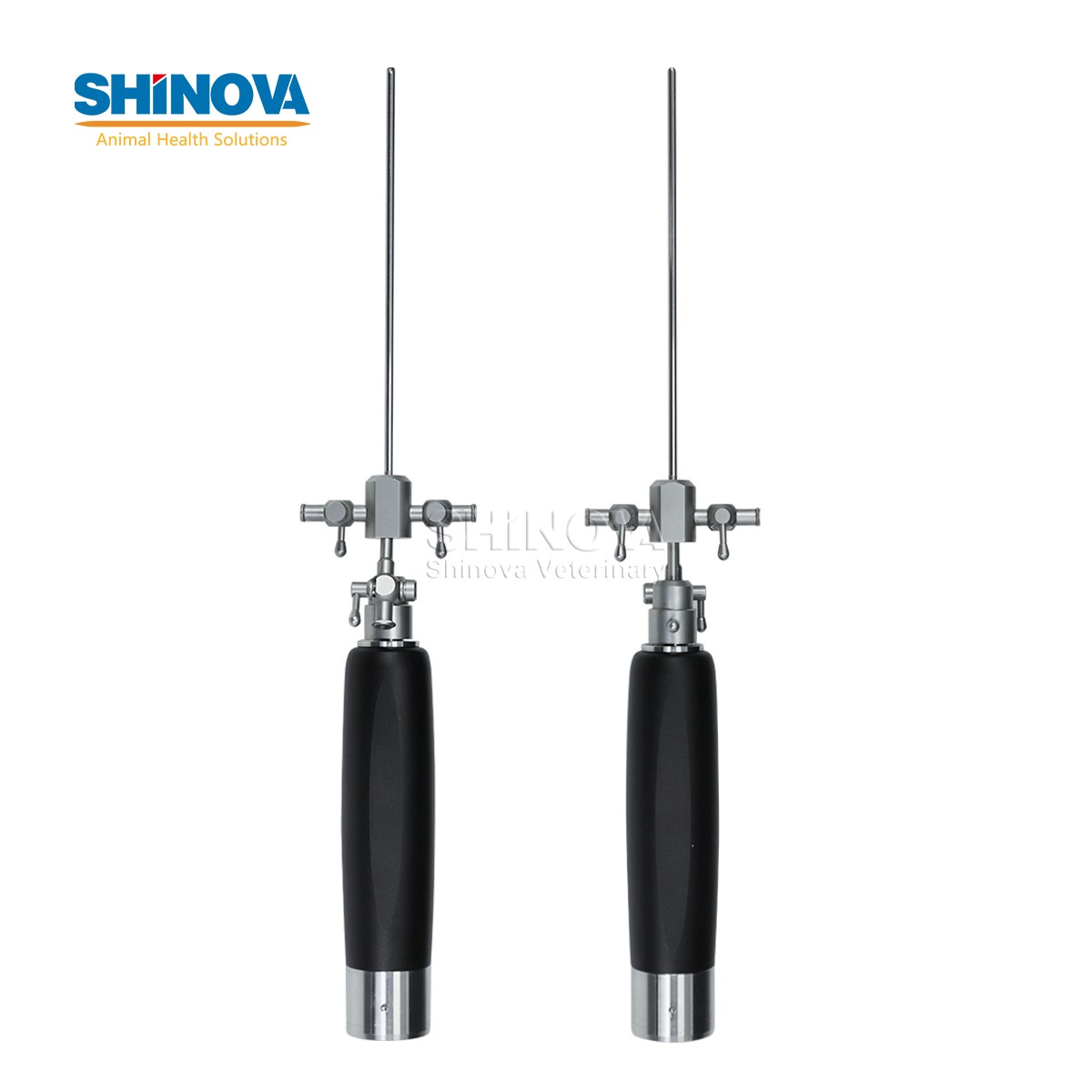

A) Slim Electronic Rhinoscope

1.8mm slim endoscope diameter

175mm working length

Designed for small animal examination

Suitable for narrow nasal cavity access



B) Nasal and Ear Canal Examination

Suitable for nasal cavity examination

Suitable for ear canal examination

Supports routine small animal endoscopic procedures



C) Triple Valve Sheath

2.8×4.3mm triple valve sheath

Provides access for different clinical procedures

Supports convenient endoscopic operation



D) Biopsy and Foreign Body Removal

1.6mm biopsy forceps included

1.6mm foreign body forceps included

Supports tissue sampling procedures

Supports removal of foreign bodies

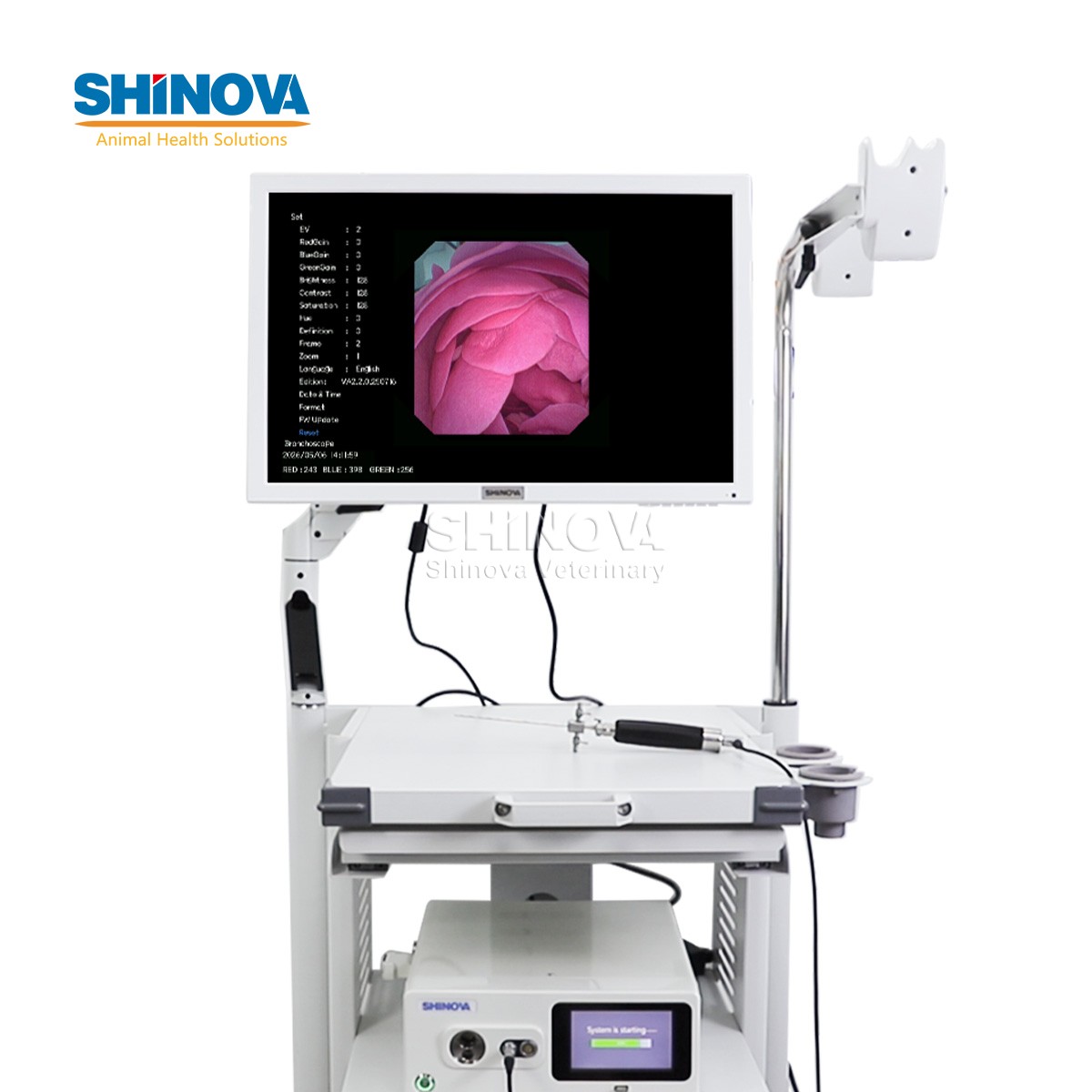

E) Image Processor Compatibility

Must be used together with VIS-120, VIS-150, VIS-310, or VIS-300M image processor

Compatible with VIS series veterinary endoscopic imaging systems

Supports image display and visualization through the matched image processor

Specifications

Application: Nasal Cavity and Ear Canal Examination

Animal Type: Small Animals

Endoscope Type: Electronic Rhinoscope

Endoscope Diameter: 1.8mm

Working Length: 175mm

Valve Sheath: Triple Valve Sheath

Sheath Size: 2.8×4.3mm

Biopsy Forceps Diameter: 1.6mm

Foreign Body Forceps Diameter: 1.6mm

Compatible Image Processors: VIS-120, VIS-150, VIS-310, VIS-300M

Connection: Must Be Used with a Compatible Image Processor

Procedures: Examination / Biopsy / Foreign Body Removal

Configurations

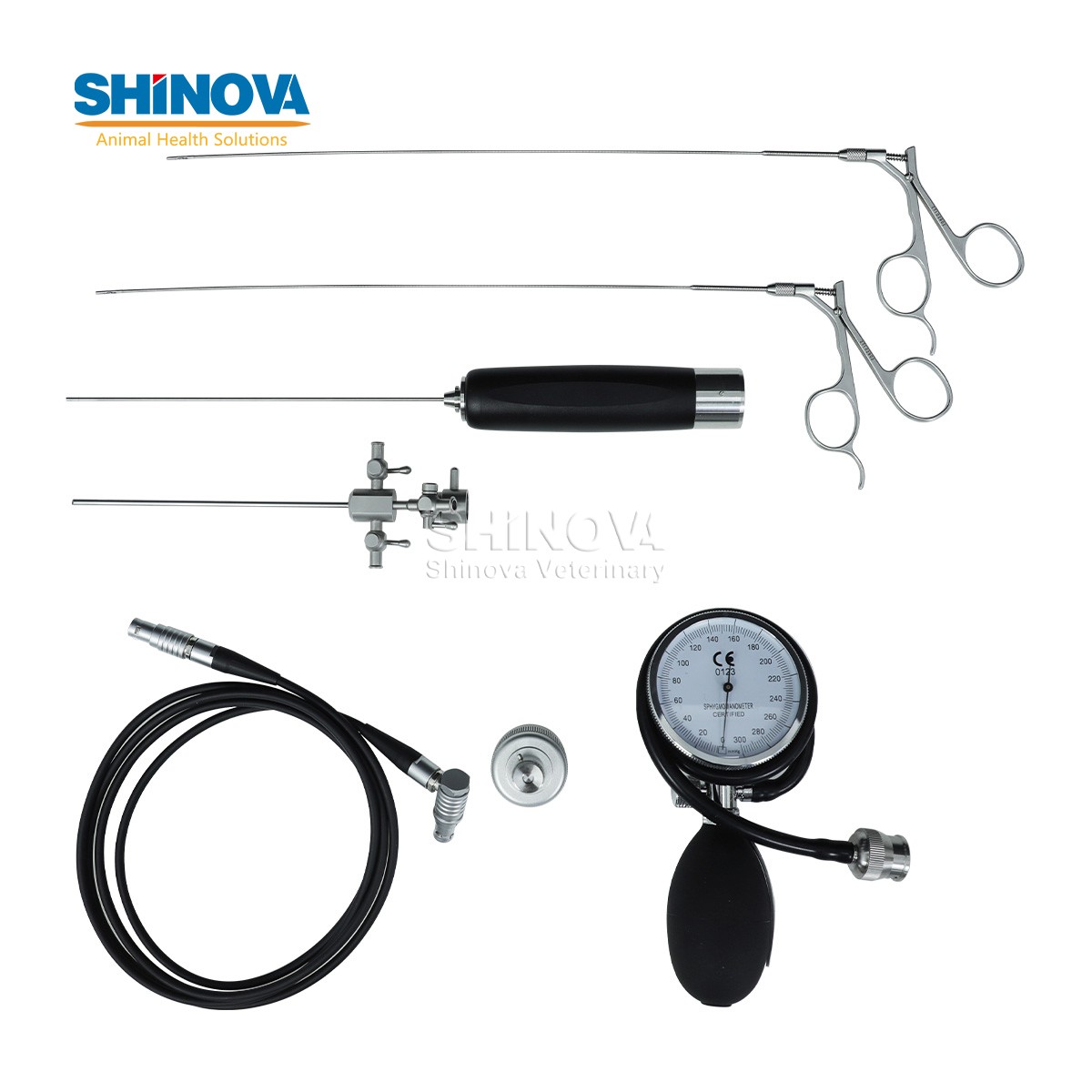

Standard Configuration:

Electronic Rhinoscope, 1.8×175mm ×1

Triple Valve Sheath, 2.8×4.3mm ×1

Biopsy Forceps, 1.6mm ×1

Foreign Body Forceps, 1.6mm ×1
