Descriptions

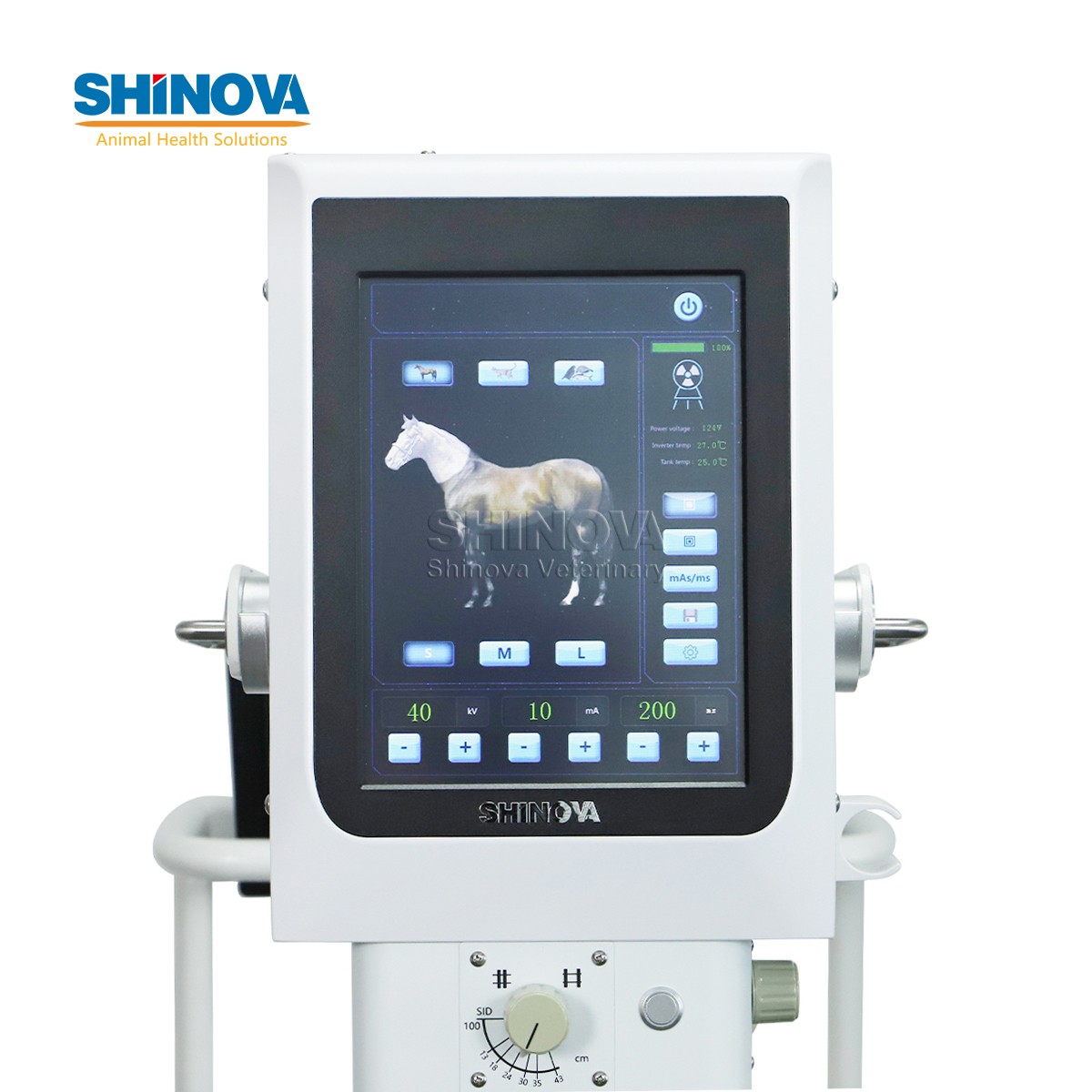

- 8-inch touch screen display
- Failure self-protection, self-diagnosis
- High precision control of tube voltage, tube current
- many kinds of presupposed anatomy memory pattern choice
- Accuracy control method of simulation and double digital loops
- X-ray tube complete surrender by lead for protect X-ray leaking
- Exposure by touch screen, hand switch or remote control

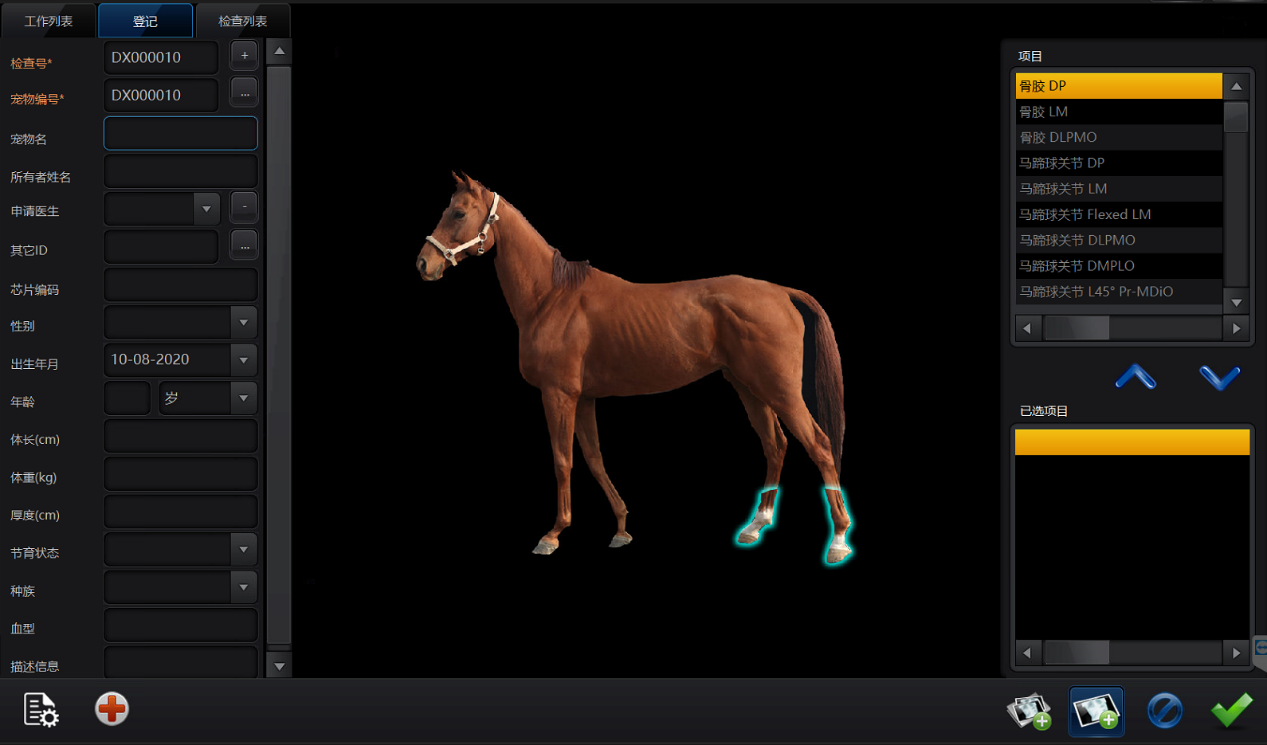

Equine Digital Radiography Operating Console (EquineDROC)
EquineDROC is a Windows based DR image acquisition and diagnostic software platform designed for equine leading in the X-ray imaging industry. It not only provides complete control of all image capture functions, but also provides rich of measurement tools for diagnostic purposes. Intuitive and optimized workflow can deliver digital diagnostic images instantly with the help of the intelligent tablet-based console companion. It has the good performance on image quality with lower dose. DROC also has fully integrated with most of commercial available imaging components as X-ray generators and flat panel detectors (FPD). Its portable system configuration is warmly welcomed by global equine market.
Intuitive Workflow Optimized for Equine
- Easily localization to any language
- Designed for equine and farrier with veterinary DICOM
· Tablet based console companion provides more efficient workflow
· Optimized touch screen operations and wireless environment
· Auto fit any display resolution monitors with true color
· Dedicated exam protocols and positioning guides
· Powerful functionalities for image processing, view, review, and print
· Ability to communicate with hospital DICOM network for HIS/RIS, PACS, and print
Wide Ranged Hardware Compatibility
· Fully integration with most components including X-ray generators, FPDs, mechanical etc.
· Support different flat panel detectors in one system
· Open software infrastructure for fast integration of new components
· Powerful and flexible system configurations for fixed, portable, or retrofit systems
· High efficient workflow and real-time hardware communication make patient more comfortable
State-of-Art Image Post-Processing
· Intelligent image processing engine delivers outstanding image quality automatically
· Image post-processing technology "Symphony" integrates a serial of algorithms
· Multiple frequency processing
· Contrast equalization helps to display the image with complex structure nicely
· Intelligent edge detection and enhancement
· Intelligent noise depression, noises and details balance
Specifications
Main Component Specification
Generator
Power
5kW
kV Range
40~110kV
mA Range
20~100mA
mAs Range
0.8-200mAs
Working Frequency
≥40kHz
Exposure time
40ms~4000ms
X-ray tube
Anode heat storage
56KHU
Focus
1.8mm
Inherent filtration
1mm Al/75Kv
Light source
LED
Wireless flat panel detector
Scintillator
CSI
Active Area
10*13 inch
Pixel Matrix
2528*3318
Data Interface
WiFi / Tethered
Trigger Mode
AED (optional) / Software
Dimensions
269mm*362mm*16mm
Weight
2.2kg
Touch Screen
Size
10.4-inch
Main Unit
Weight
19kg
Dimension
290mm*265mm *230mm
Power Supply
Voltage
AC 220V±10%, 50Hz±1Hz
