Descriptions

Reagent Panels:

1)         Health Checking Panel (19 items): ALB, TP, Ca, GLU, BUN, PHOS, AMY CHOL, ALT, AST, TBIL, ALKP, CRE, CK, GLOB, ALB/GLOB, AST/ALT, BUN/CRE, Ca*PHOS

2)         Liver and Renal Panel (14 items): TP, ALB, TBIL, ALT, AST, GGT, BUN, CRE, ALKP, UA, GLOB, ALB/GLOB, AST/ALT, BUN/CRE

3)         Preanesthetic Panel (11 items): TP, GLU, BUN, AST, CK, ALT, LDH, ALKP, CRE, AST/ALT, BUN/CRE

4)         Acute and Severe Cases Panel (12 items): CI, GLU, BUN, K, ALT, CO2, CRE, Na, AMY, BUN/CRE, Na/K, AG

5)         Electrolytes Plus Panel (11 items): K, Na, CI, CO2, Ca, Mg, PHOS, pH Na/K, AG ,Ca*PHOS

6)         Liver Function Panel (12 items): TP, ALB, TBIL, ALT, AST, GGT, DBIL, ALKP, GLOB, IBIL, ALB/GLOB, AST/ALT

7)         Renal Function Panel (9 items): ALB, BUN, CRE, Ca, PHOS, UA, CO2, BUN/CRE, Ca*PHOS

8)         Basic Examination Panel (10 items): ALB, TP, GLU, BUN, ALT, ALKP, CRE, GLOB, ALB/GLOB, BUN/CRE

9)         Comprehensive Examination Panel (24 items): ALB, TP, Ca, GLU, BUN, PHOS, AMY CHOL, ALT, AST, TBIL, ALKP, CRE, CK, TRIG, CHE, LDH, UA, TBA, GLOB, ALB/GLOB, AST/ALT, BUN/CRE, Ca*PHOS

10)     Canine Inflammation Panel (9 items): BUN, CRE, PHOS, TBIL, AST, AMY, GGT, CRP, BUN/CRE

11)     Feline Inflammation Panel (8 items): TP, ALB, AMY, GGT, TBIL, SAA, GLOB, ALB/GLOB

12)     Big Animals Panel (13 items): TP, ALB, GLOB, ALB/GLOB, AST, GGT, ALKP, BUN, CK, PHOS, Mg, Ca, Ca*PHOS

13)     Avian/ Reptilian Panel (19 items): TP, ALB, AST, TBA, Ca, CK, GLU, TRIG, K, Na, PHOS, UA, Mg, LDH, CHOL, GLOB, ALB/GLOB, Na/K, Ca*PHOS

14)     Diabetes Examination Panel (14 items): GLU, FRU, TRIG, CHOL, ALT, AST, TP, ALB, BUN, CRE, GLOB, ALB/GLOB, AST/ALT, BUN/CRE

Specifications

Item	Specifications

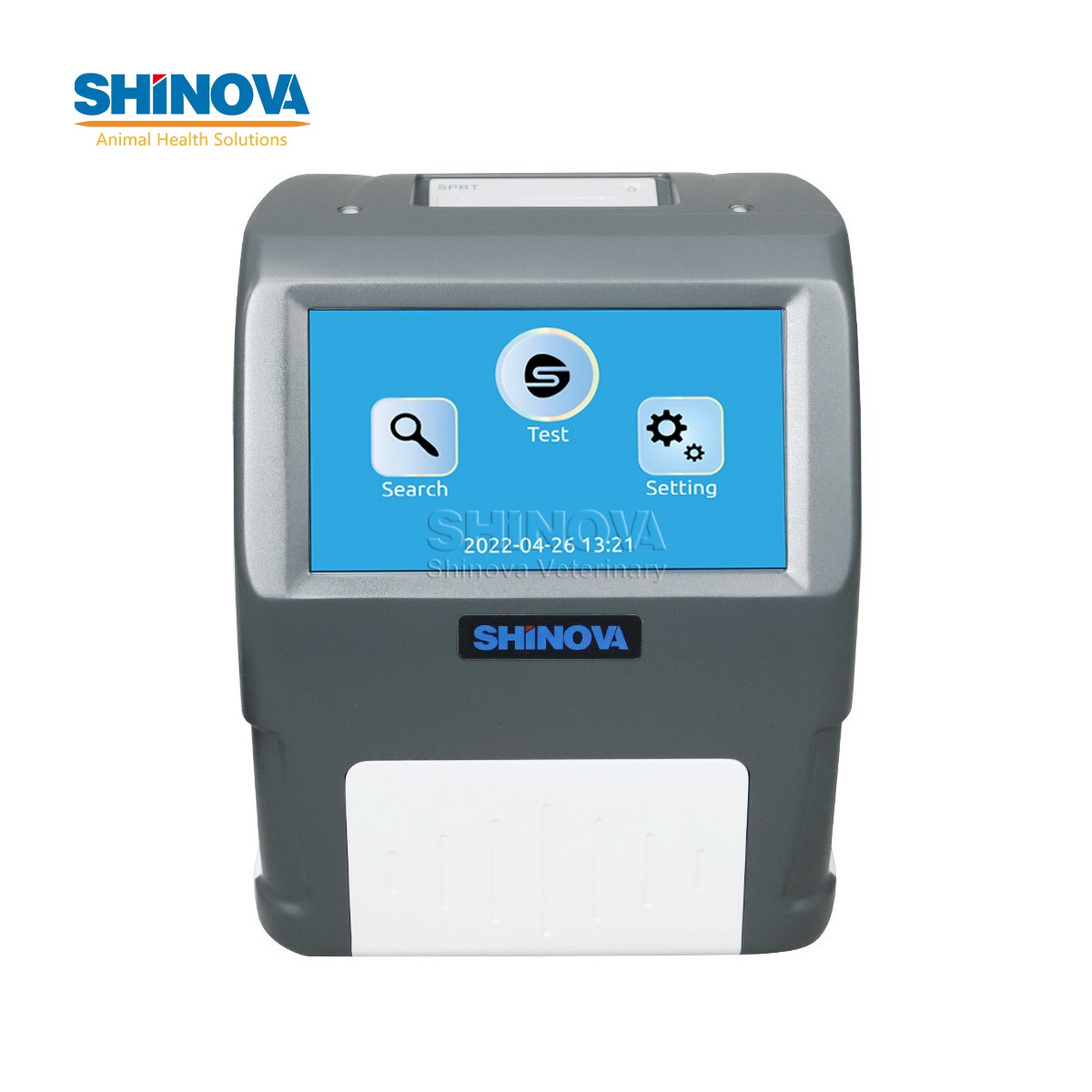

Operation interface	7-inch LCD touch screen, English language
Sample type	anticoagulant whole blood, serum and plasma
Sample capacity	0.1ml (100μL)
Calibration method	free of calibration, automatically reads factory calibration information
Intelligent monitoring	built-in intelligent monitoring system to ensure the accuracy of each sample detection
Detection time	about 10 minutes
Reagent disk	with diluent and lyophilized reagent
Temp accuracy	37℃±0.1℃
Data capacity	at least 50000 patient data & quality control data
Output interface	WiFi, 1 Ethernet port, 2 USB interfaces, supporting LIS system
Printing	with thermal printer, standard report can be printed externally
Weight	4.3kg
