Descriptions

Specifications

X-ray High-frequency Generator

Output Power	80 kW
Tube Voltage	40~150 kV
Tube Current	10~1000 mA
Exposure Time	1~630 ms
mAs Range	0.1~1000 mAs
Input Power Supply	AC 380V
Inverter Frequency	500 kHz

X-ray Tube Assembly

Nominal Tube Voltage	150 kV
Focal Spots	0.6 mm / 1.2 mm
Target Angle	12°
Maximum Power	Small focal spot: 32 kW
Large focal spot	80 kW
Tube Assembly Heat Capacity	1000 kJ (1410 kHu)
Anode Heat Capacity	283 kJ (400 kHu)

Collimator

Inherent Filtration	1.0 mm Al @ 75 kV Smooth, flexible and reliable blade adjustment; supports continuous adjustment of rectangular irradiation fields during clinical use.
Light field timer	30 seconds, with automatic light-off function.

Flat Panel Detector

Scintillator	CsI
Pixel Size	139 μm
Active Imaging Area	427 × 427 mm
Pixel Matrix	3072 × 3072 px

Acquisition Workstation

CPU	3.70 GHz
Memory	8 GB
Storage	1 TB
Monitor	≥23" color LCD
Resolution	1920 × 1080

X-ray Tube Column

Column Height	1620 mm
Rotary Plate Height	100 mm
Base Height	12 mm
Vertical Travel Range	0~520 mm

Detector Column

Column Height	1620 mm
Sensor Column Height	360 mm
Base Height	12 mm
Vertical Travel Range	0~550 mm

Anti-Scatter Grid

Size	18 × 18 inches, aluminum base
Focal Distance (f0)	100 cm
Grid Ratio	10:1
Line Density	103 lines/inch

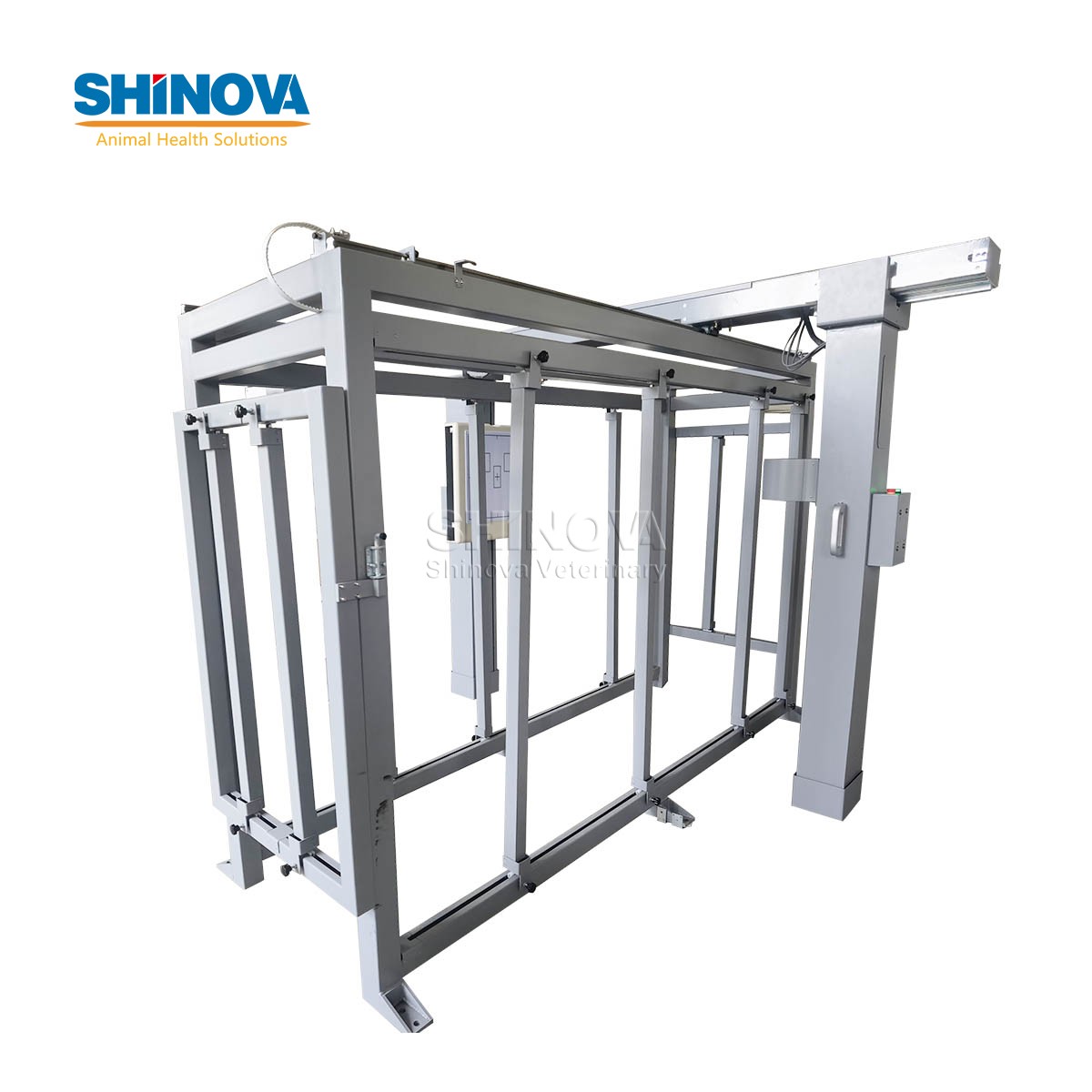

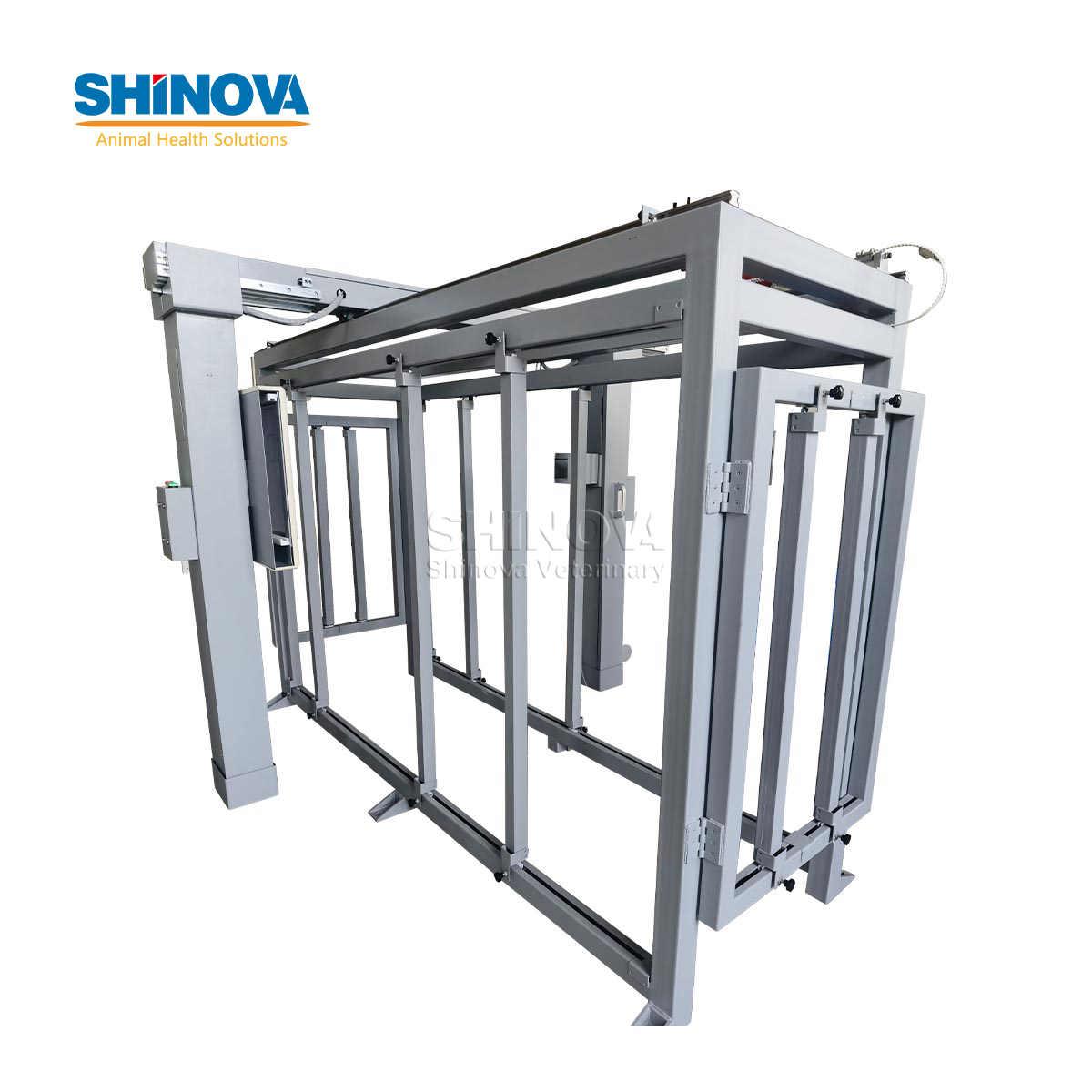

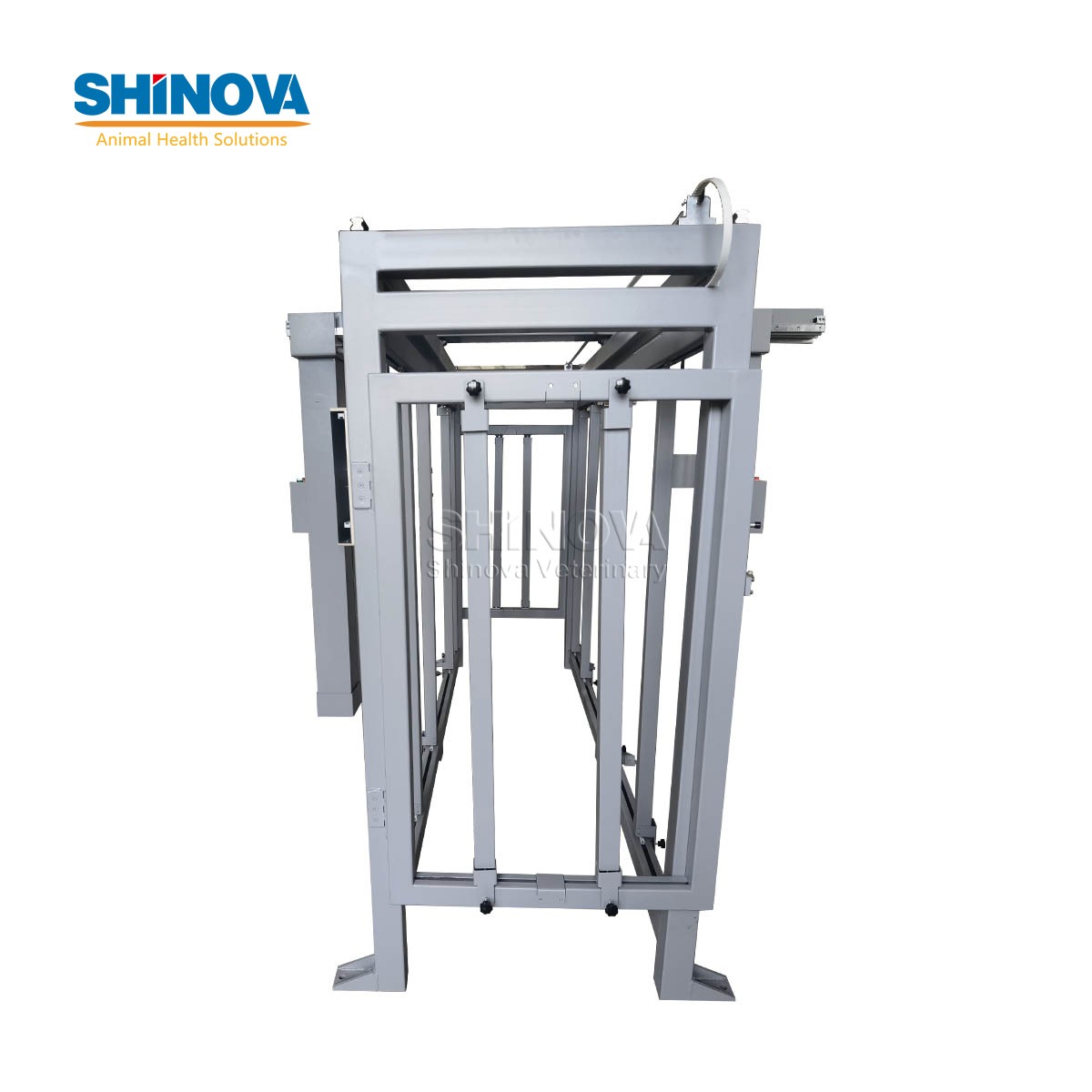

System Frame

SID from Ground	390 mm ±10 mm
SID from Ground	1490 mm ±10 mm
SID Vertical Travel	1100 mm ±10 mm
FID Distance	1265~1715 mm ±10 mm
Column Front-Back Travel	2350 mm ±10 mm
Column Lateral Travel (single side)	220 mm ±10 mm
Internal Frame Dimensions	2700 mm (L) × 700 mm (W)
External Frame Dimensions	3165 × 2435 × 2035 mm
Internal Imaging Distance	1440 mm
