Descriptions

High-definition CMOS camera captures high quality endoscopy images.

Field of view technology provides excellent and detailed images.

Large range angulations make it easier to observation.

3-100mm depth of view provides precise observation ability for both close and far objects.

3.7mm working channel makes it easier to pass through all kind of instruments for animal treatment.

24" medical monitor provides high-definition image quality.

Multi-functional endoscopy trolley with aluminum-steel construction, rotating arm, dual-cradle scope holder, four shelves and lockable casters.

Video processor is updatable to form multifunctional endoscopy examinations such as gastroscopy, bronchoscopy, laparoscopy, etc.

Wider clinical applications for gastroscopy, colonoscopy in small animals like dogs and cats, and for bronchoscopy, rhinoscopy, pharynogoscopy and laryngoscopy in large animals like horses and cattle.

Specifications

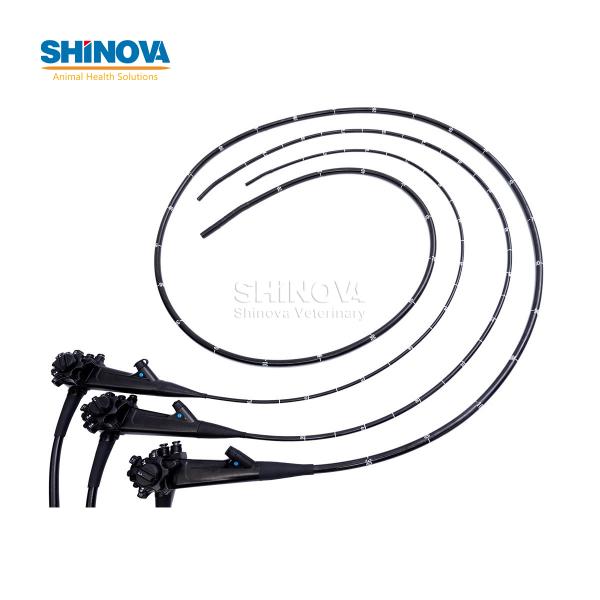

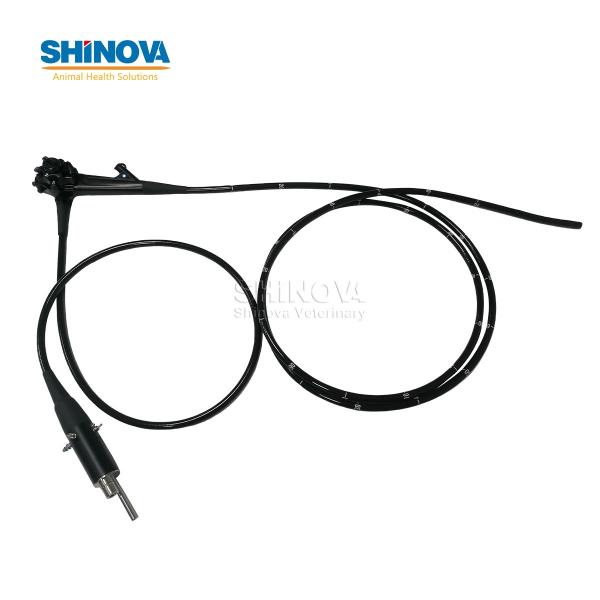

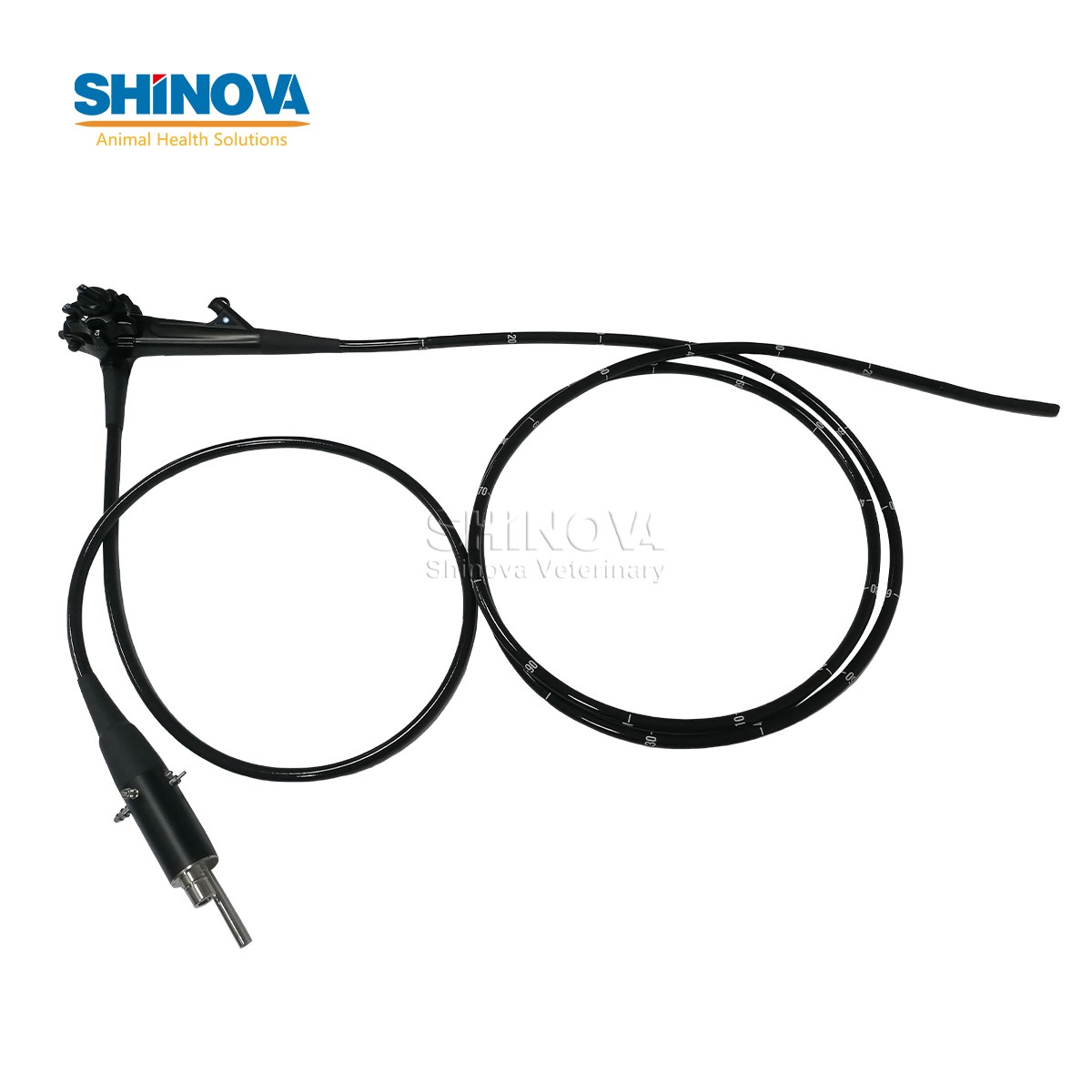

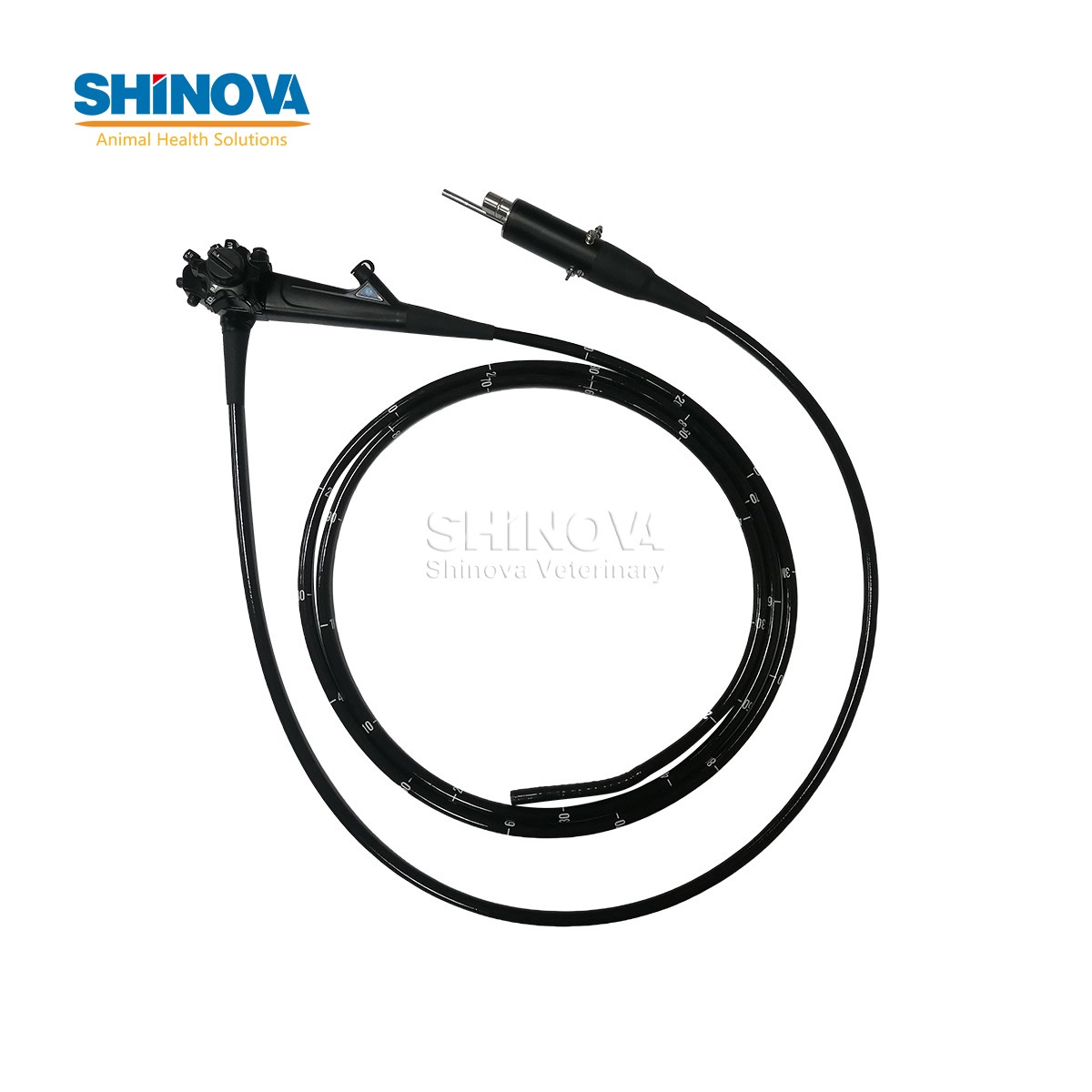

l  Endoscope (VE-1235W)

Working length: 3500mm

Outer diameter: 12.9mm

Working channel: 3.7mm

Bending range: U180°, D180°, R160°, L160°

Applications: For ≥80kg large animal’s gastroscopy (horses, cattle, dolphin and other large animals)

Note: VE-1235W supports auxiliary water inlet. It is equipped with an auxiliary water channel that can be connected to an irrigation pump to deliver a direct water jet in front of the lens, enabling real-time flushing of gastric residues in the horse’s stomach and providing veterinarians with a clearer field of view (irrigation pump is optional).

l  Video Processor (VIS-300G)

Application: 2-in-1 (Gastroscopy/Laparoscopy)

Light Source: 80W LED

Luminance: ≥1000Lm

Service Life: ≥20,000hours

Air Pressure: 0.05MPa

Flow Rate: 0.75M³/N

White Balance: Automatic

Recording: 64G TF card for photo/video

Imaging Output: HDMI/DVI, 1080P

Voltage: 100-240V, 50-60Hz

Configurations

Standard Configuration:

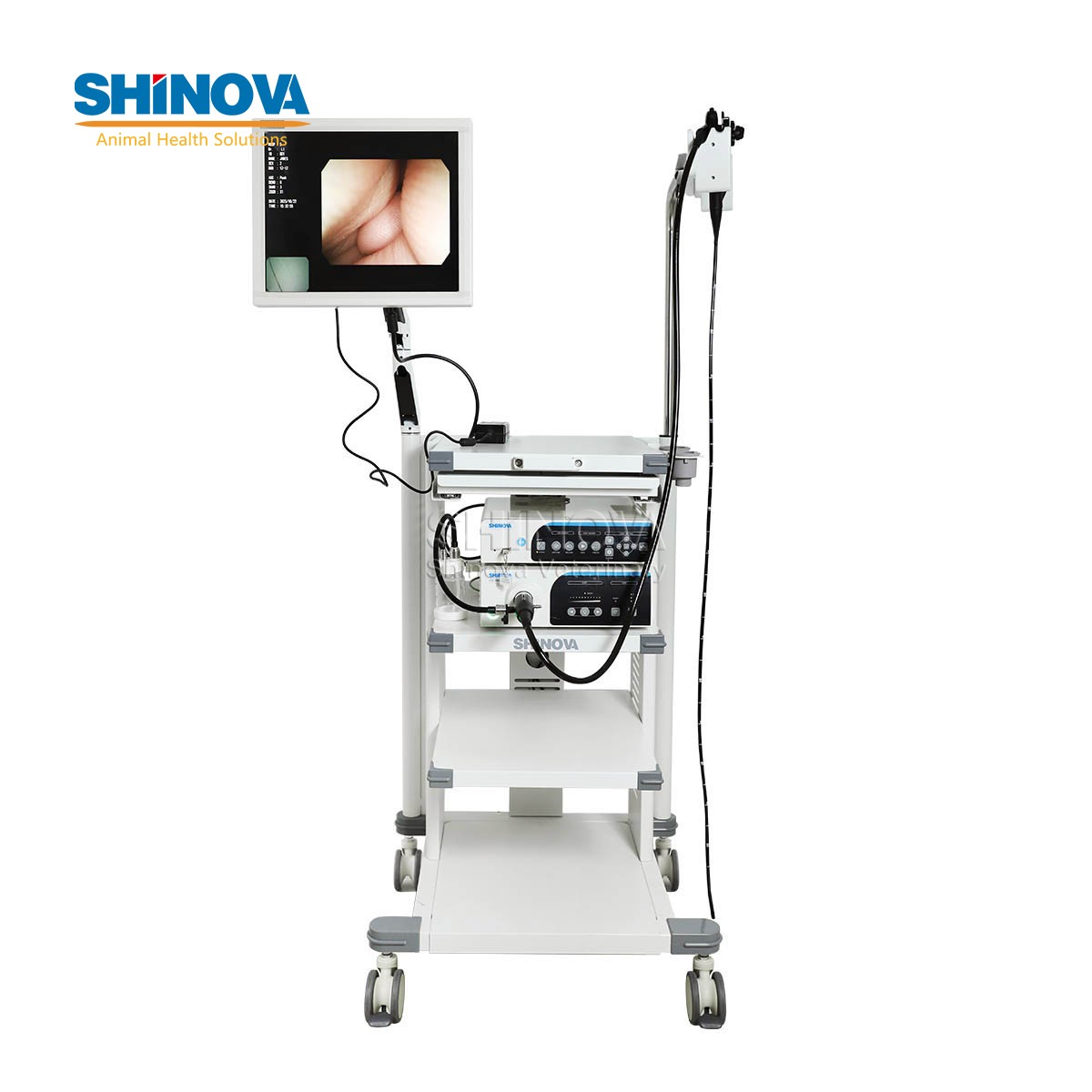

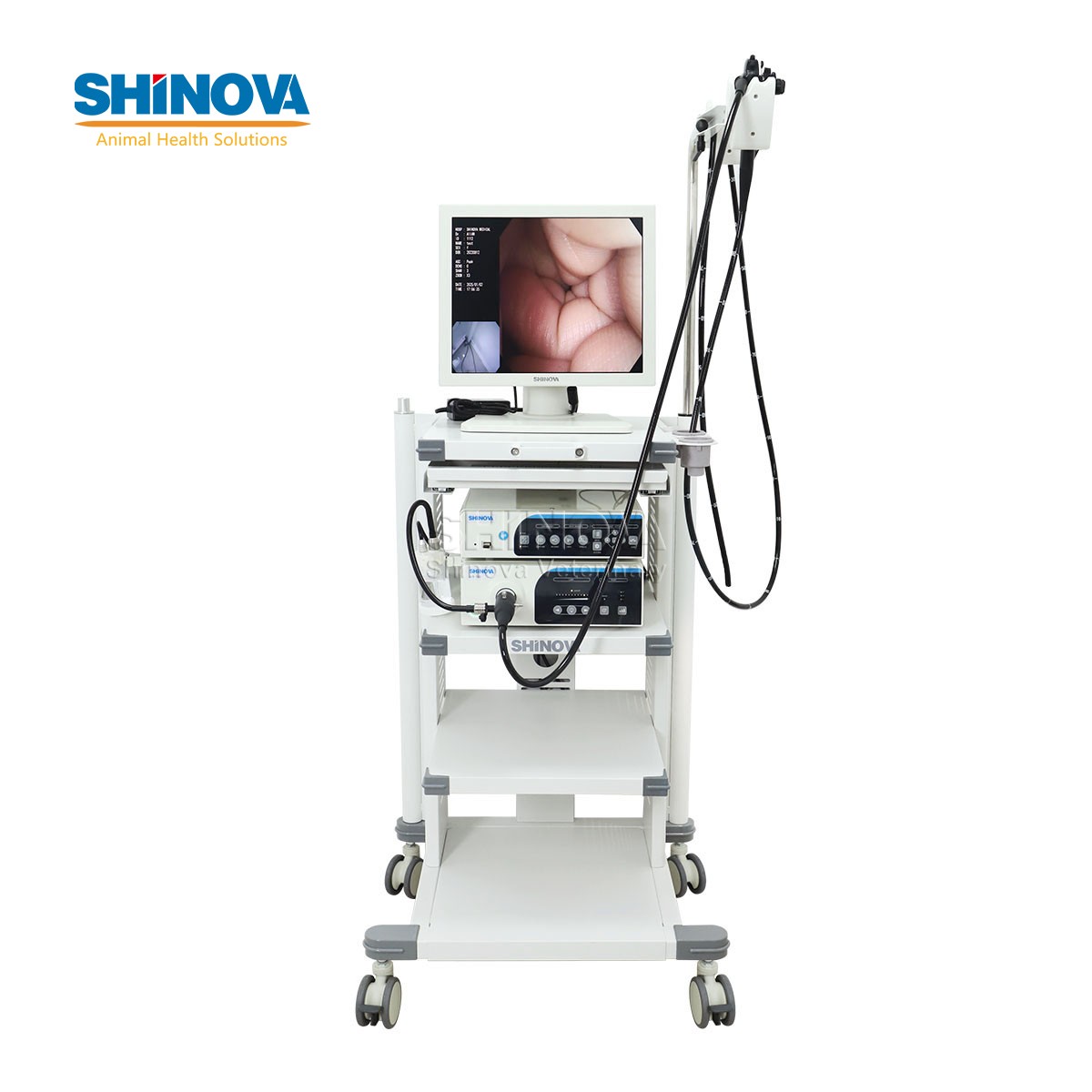

Endoscope (VE-1235W), image processor (VIS-300G), 24" medical monitor (M240), trolley (EndoCart-6), maintenance tools, carrying case, etc.

Optional Configuration:

Video processor with light source VIS-300M or VIS-310, disposable grasping forceps, disposable biopsy forceps, disposable electric snare, disposable endoscopic retriever, disposable stone basket, disposable injection needle, disposable spray tube, etc.
