    SHINOVA

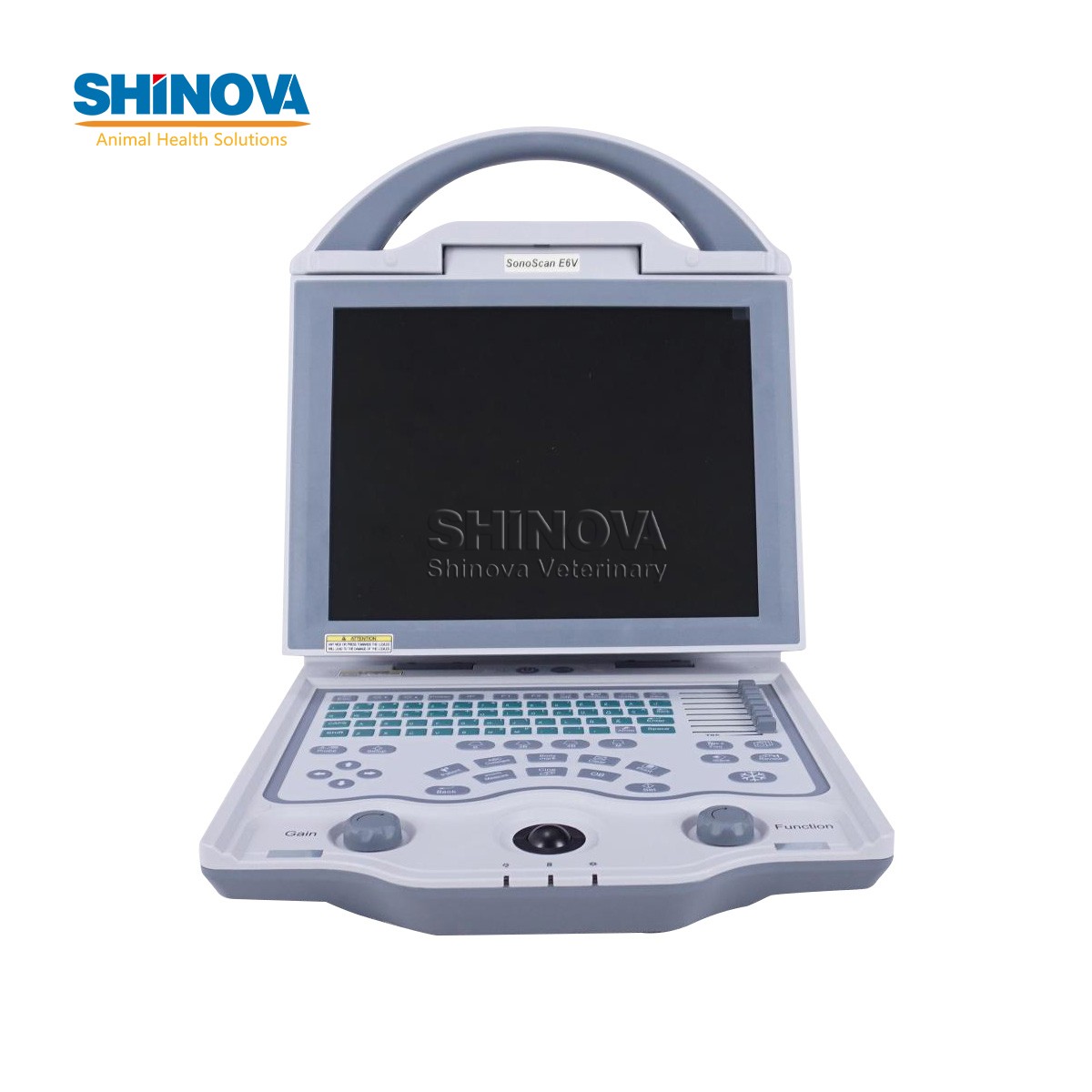

    SonoScan E6V
    Black/White Ultrasound
    Get Latest Price!
    1 Pieces
    Within 15 days against payment
    T/T, L/C, Paypal, Cash, Other
    34*32*43
    7.00
    Cat, Dog
    Operating Room, Exam Room

Descriptions




1) Super Portable machine
2) Double power supply mode: AC power supply, 4400mAh battery for more than 200 minutes work

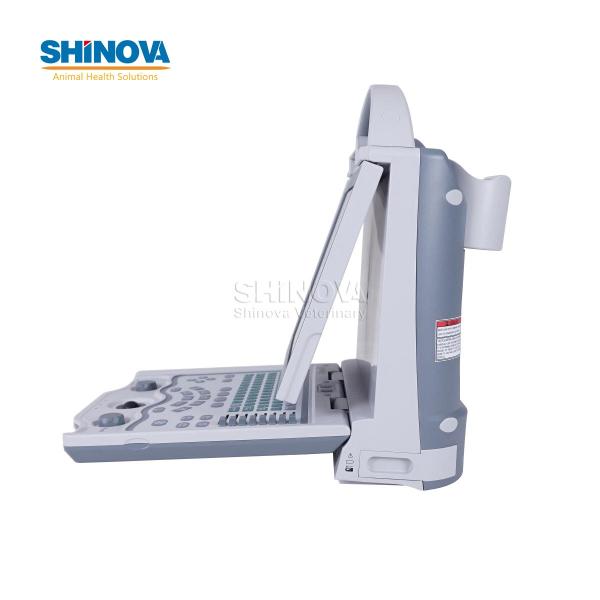

3) Particular turnover LED: The display monitor could be adjust the angle conveniently.
4) High quality clinical image: Image quality is more beautiful and distinctly, high resolution and full screen display


Specifications

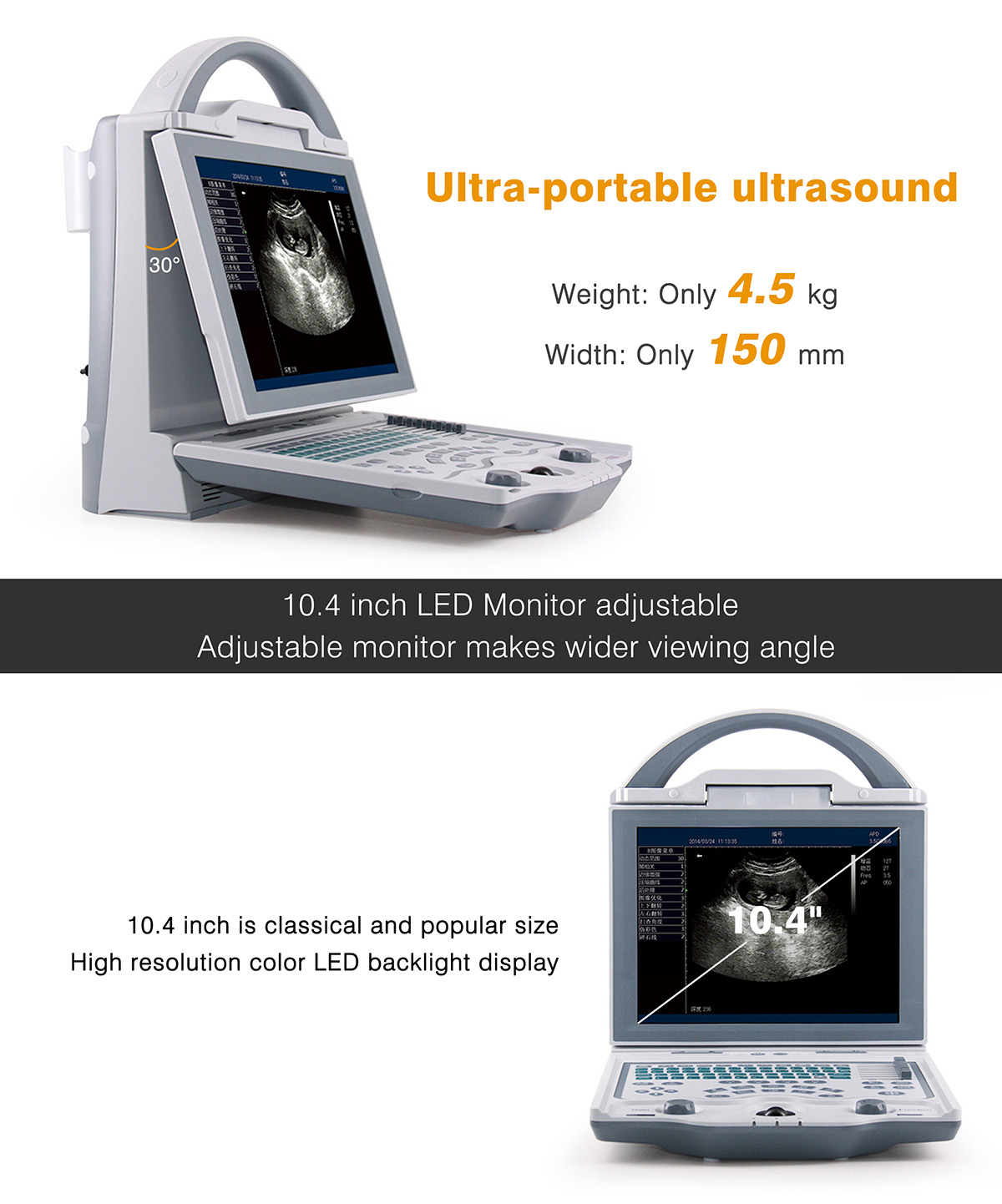

10.4" high resolution color LED backlight display, with high contrast and wide viewing angle
Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese

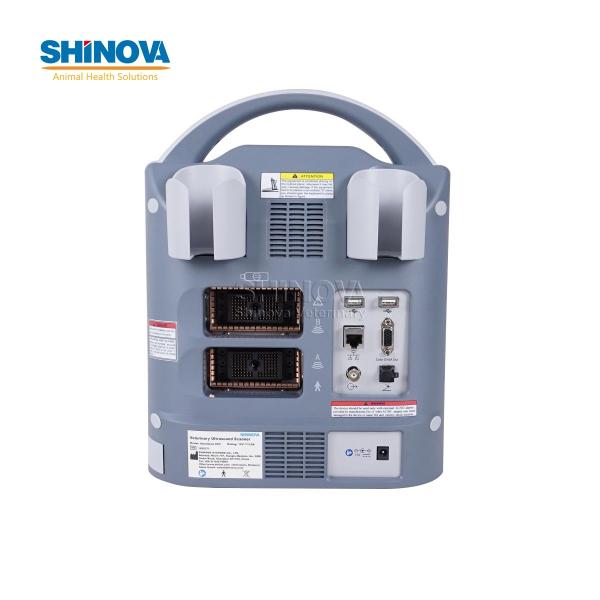

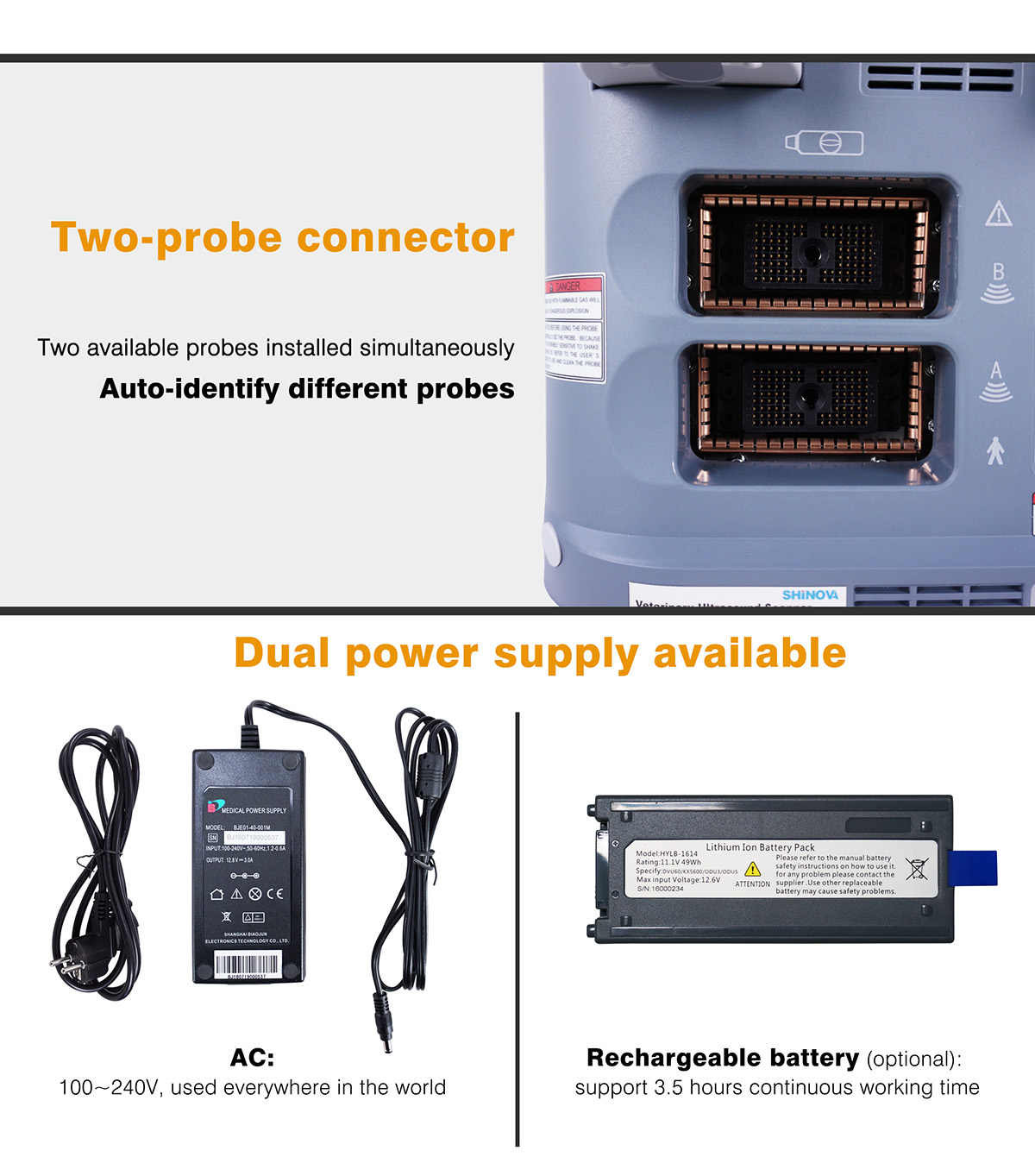

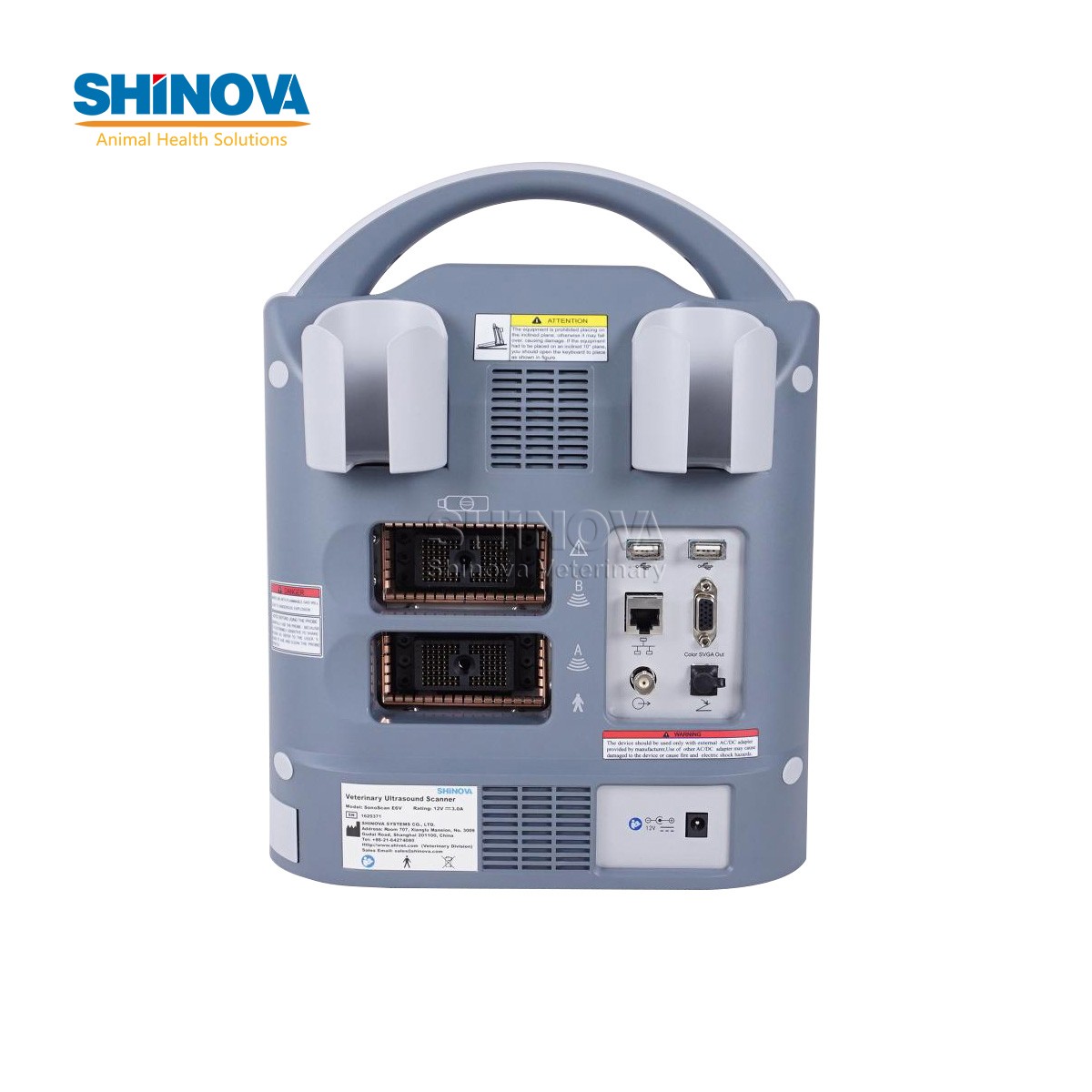

Two probe sockets, auto-identify different optional probe
Body marks: total 64 kinds body marks indicating probe position
Display mode: B, 2B, 4B , B/M, M
Adjustable depth: 10 grades, max depth to 236mm
Contrast: 27~90dB
Gray scale: 256
8 steps intelligent TGC
Frame frequency: 30 frames /second
8 kinds pseudo colors
Image storage: 4G hard disk to permanently store about 5000 frames images, without loss when power off
Cine loop: 256 frames
Puncture guide function with 2 correctable puncture guiding lines (adjustable angle & position)
The gravel software package with real-time position line measurement

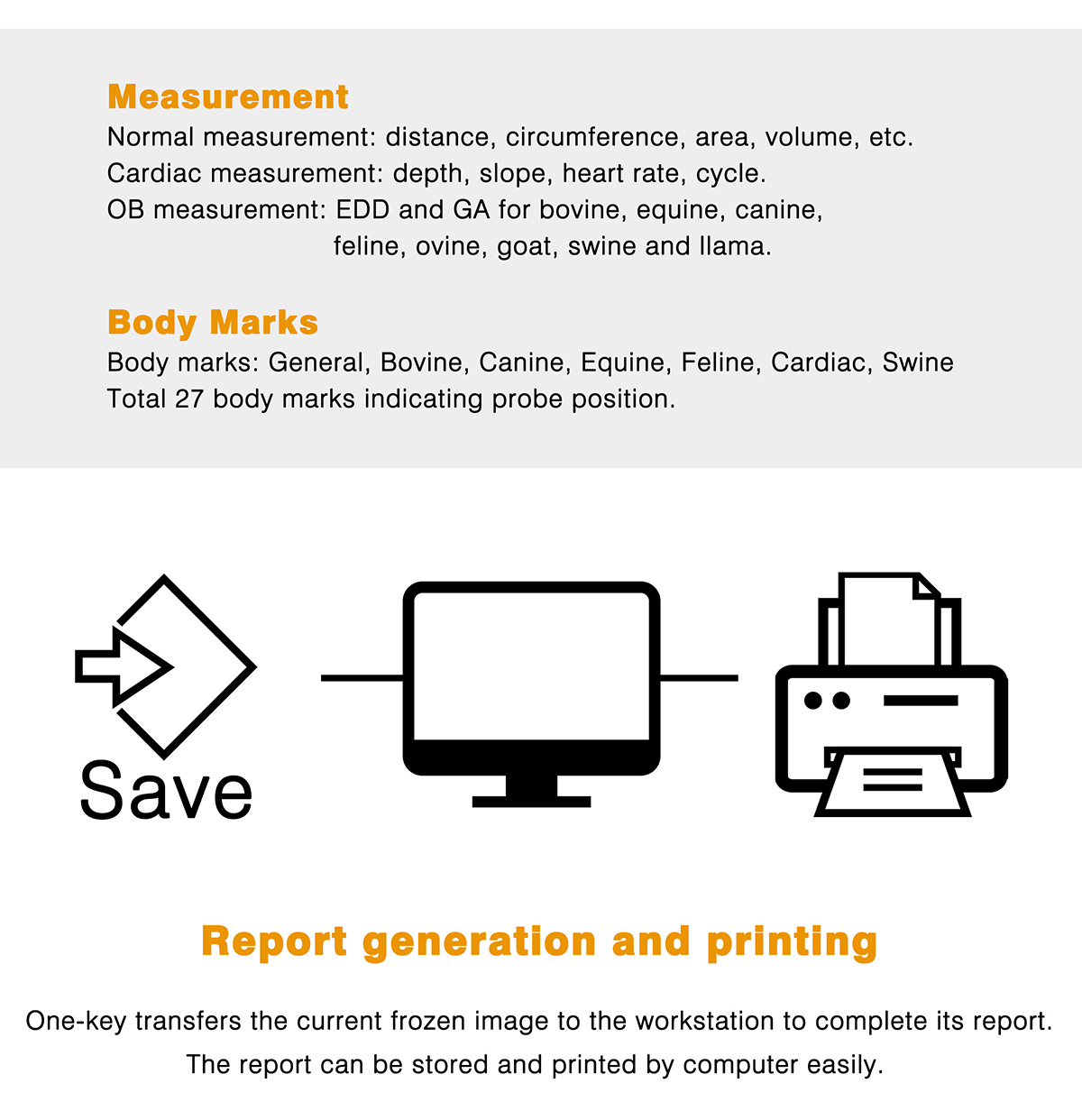

OB measurement: EDD and GA for bovine, equine, ovine, canine, feline, goat, swine and lama
Urology measurement and analysis: residual urine volumem, prostate volume, and urology report
Dual TV output: PAL/NTSC, can connect video printer when necessary
Power supply: 100-240V, 1.2-0.6A, frequency: 50-60Hz
Power supply adaptor output: DC12.8V, 3.0A
Main unit weight: 4.5kg(without accessories)
Main unit dimension: 256×150×326mm(L×W×H)


Configurations

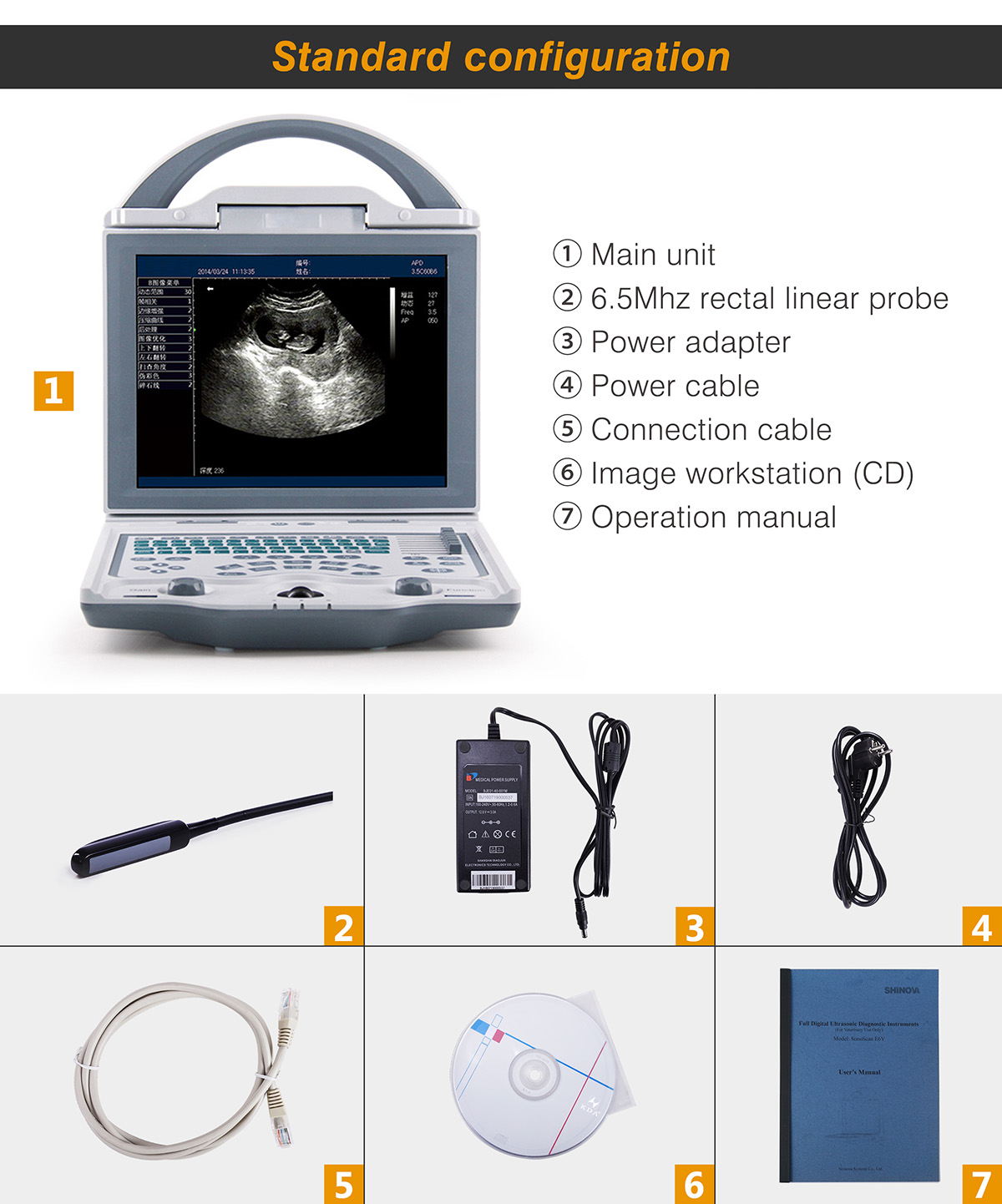

Standard:

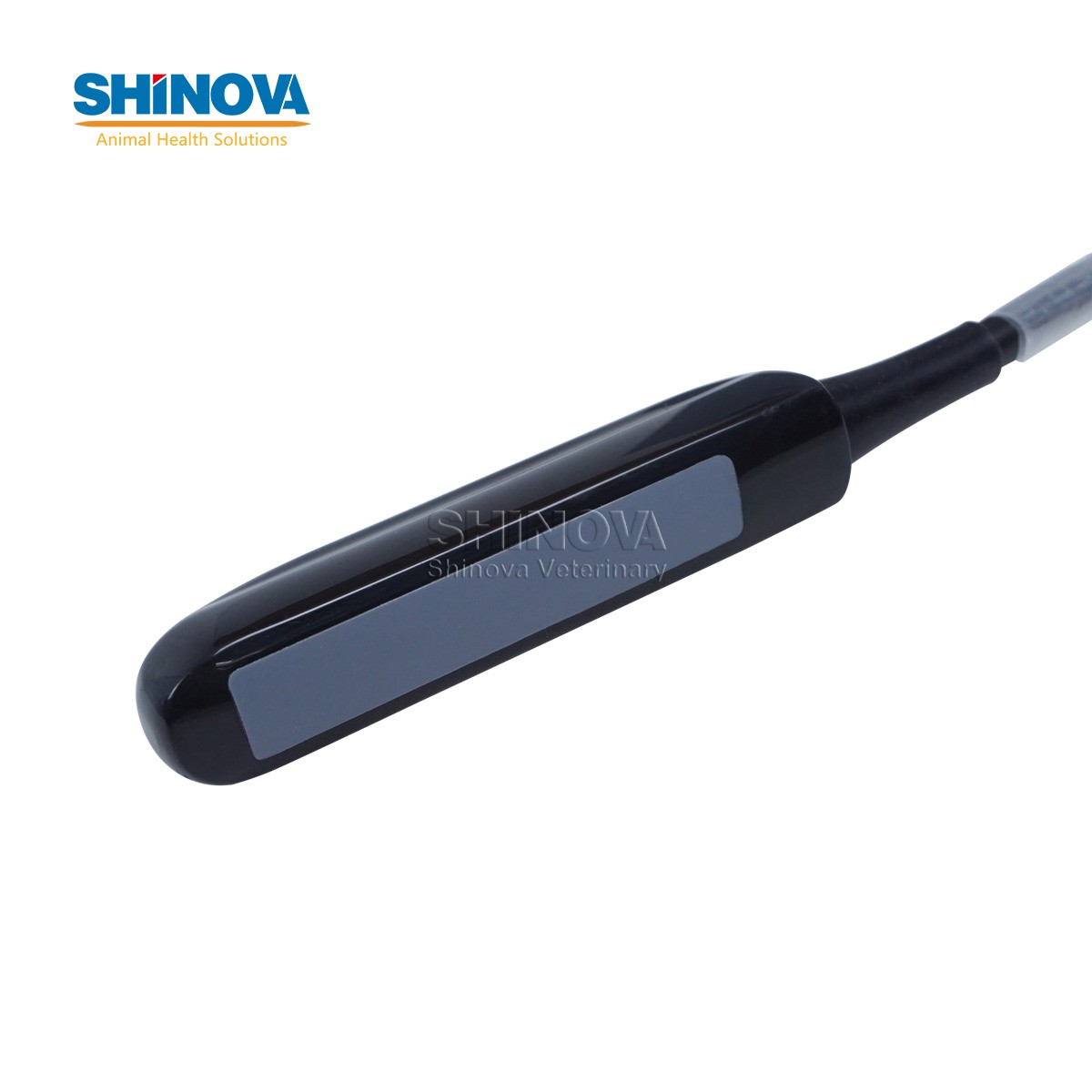

Main unit + one 6.5MHz Rectal Linear Probe

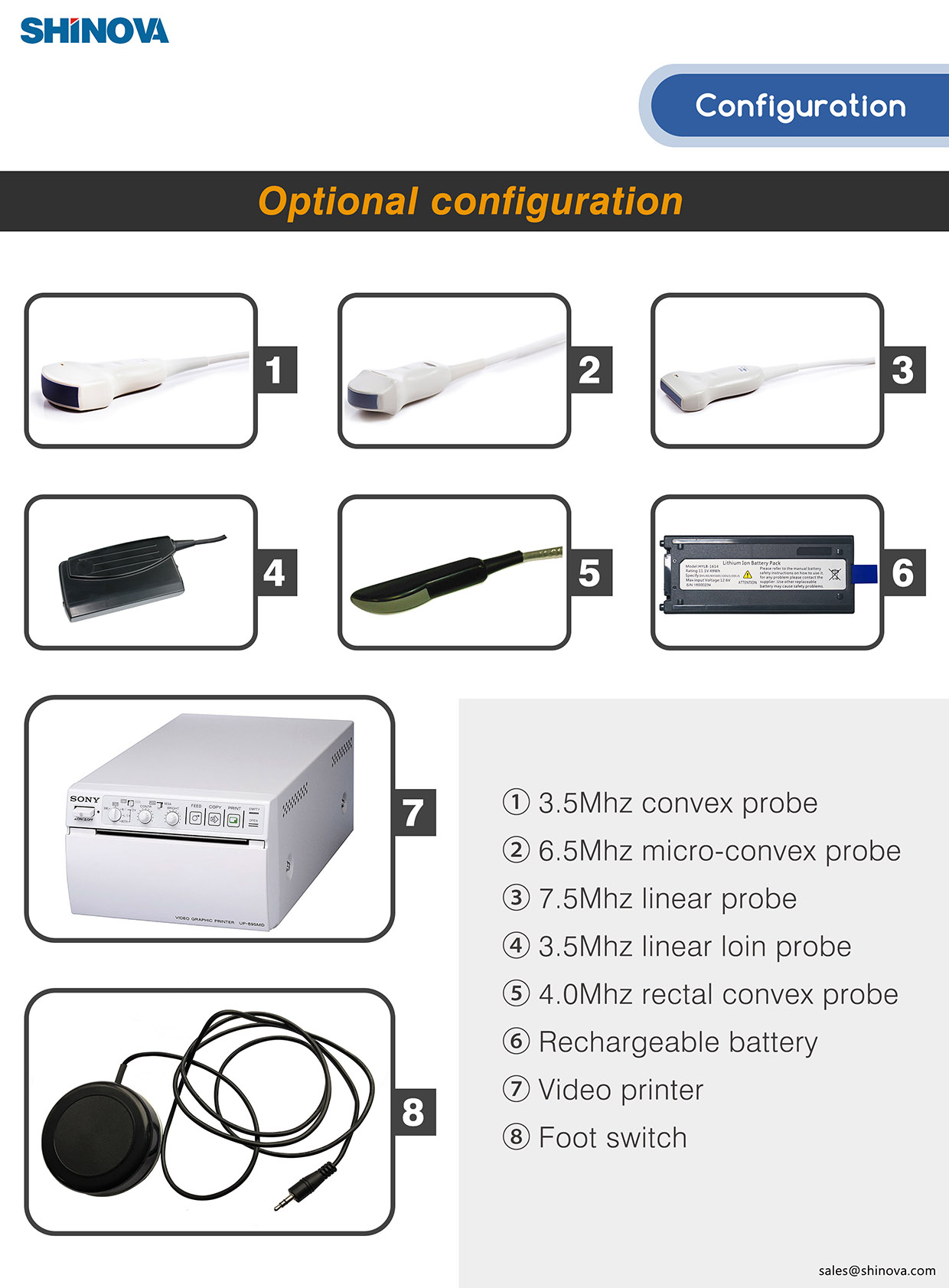

Optional:

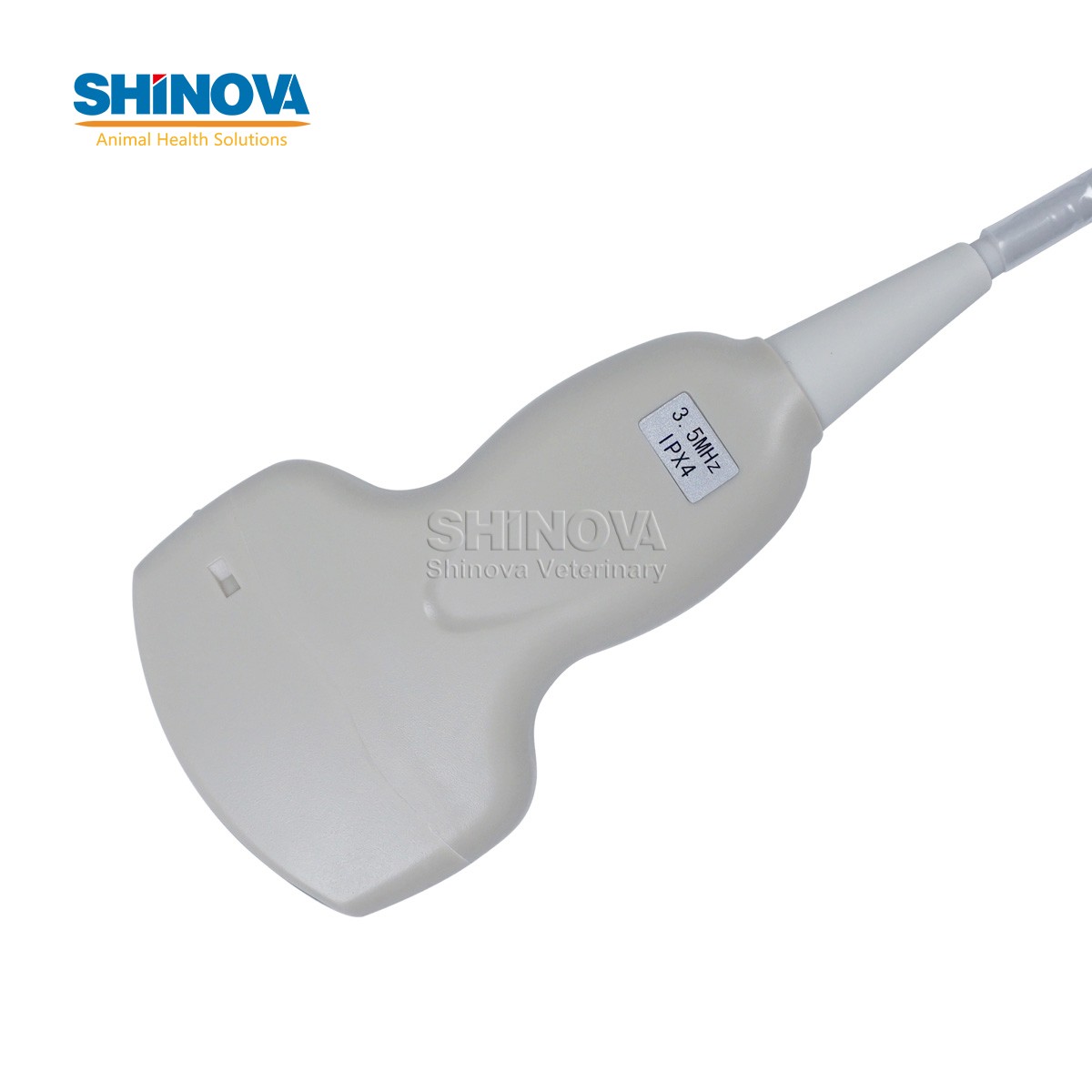

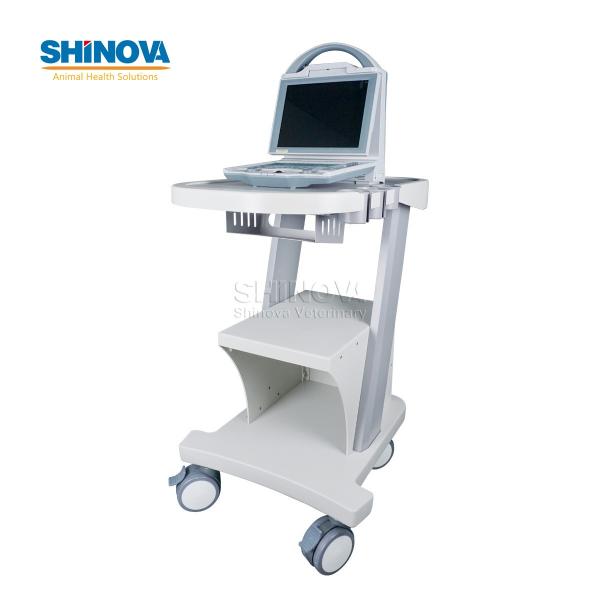

5.0MHz multi-frequency micro-convex probe, 7.5MHz multi-frequency linear probe, Li-battery, Trolley, Charger
