Descriptions

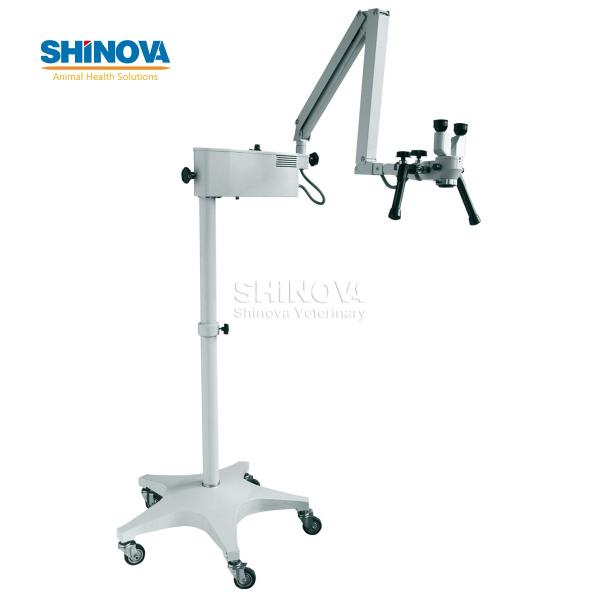

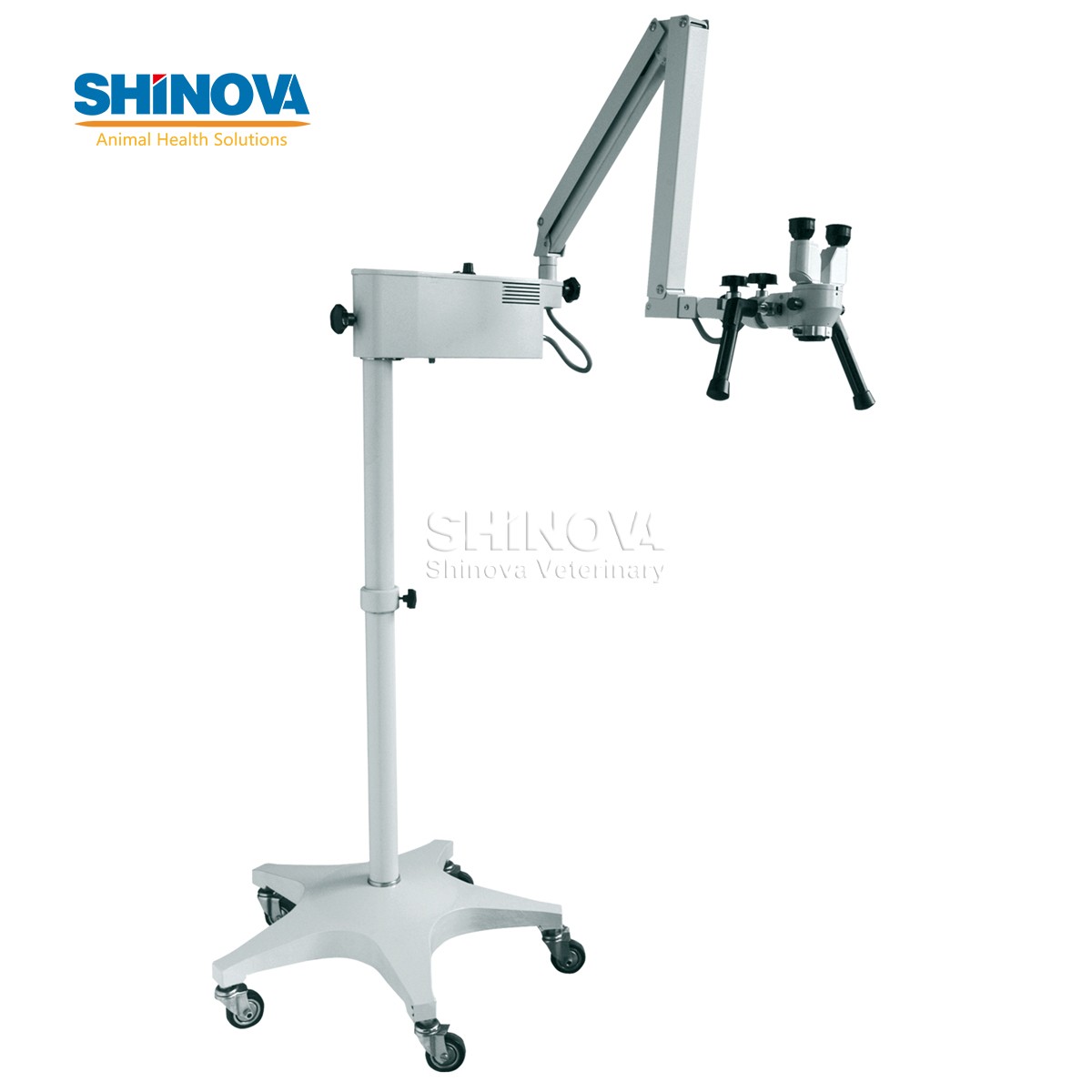

EOM Series Veterinary Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.Applications:EOM-200S, EOM-200SB: Clinic applications for ENTEOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology
Specifications
Model
EOM-200S
EOM-200T
EOM-200SB
EOM-200TB
Binocular observation
Straight
45º Tilted
Straight
45º Tilted
Observation magnification
6X
Interpupillary distance
50mm-80mm
Diopter
±5D
Magnification changer
3-step magnification change: 0.6X, 1X, 1.6X
Focal length of objective
2 objectives: F=200mm, 300mm
Total magnification
3X-12X
Linear field
60.8-15.8mm
Fine focusing range
10mm
Filter
Built-in green and yellow filters
Illumination system
Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp
21V 150W halogen lamp (10W LED optional)
Power supply
AC 220V/50Hz, or 110V/60Hz
Beamsplitter
No
50:50 Beamsplitter
TV adapter
C-mount 1/3 inch CCD camera attachable
Balancing arm
With 2-part arm and table mount
With 2-part arm, counterweight adjustable and can be locked. With floor stand.
Optional
Objective F=250mm & F=400mm, Wall mount
Demonstrator, Camera, Photo adapter, Monitor,
Objective F=250mm & F=400mm, Wall mount, Table mount
