Descriptions

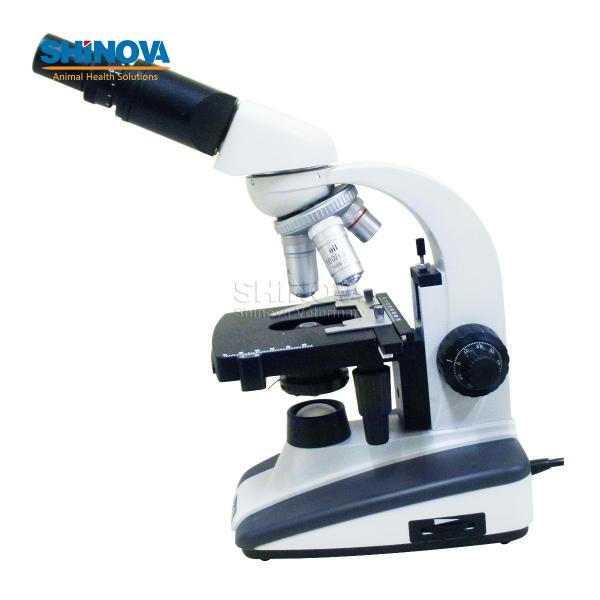

BM-2C biological microscope uses very widely. It is suitable to biology, pathology, bacteriology observation, teaching and professional research, clinical experiment and routine medical examination for medical and health institutions, labs, graduate institutes and colleges. It is a necessary instrument for the schools’ labs too.
BM-2C biological microscope’s design is advanced, sculpt is novelty, adopts different kinds of techniques to make microscope is easy to use, safety and credibility.
Specifications
1. Eyepieces
Type Magnification Field(mm) Plan 10× φ18 16× φ12
2. Objectives
Type Magnification N.A. (mm) W.D. (mm) Objectives 4× 0.10 37.5 10× 0.25 7.31 40× 0.65 0.63 100×(oil) 1.25 0.18
3. Optical magnification: 40×—1600×
4. Articulated type binocular, interpupillary distance adjustment range: 55-75mm, inclined 30o, turning to 360o5.Condenser: N.A. 1.25, Abbe condenser with Iris Diaphragm
6. Filters: blue, yellow, green and frosted
7. Stage size: 125×130mm move range: 60×30mmmm, vernier: 0.1mmCoarse/fine focusing hand wheel, focusing range: 35mm, minimum division: 0.002mm8. Electronic light source: 6V/20W with continuous adjustable brightness9. Anti-fungus: yes.

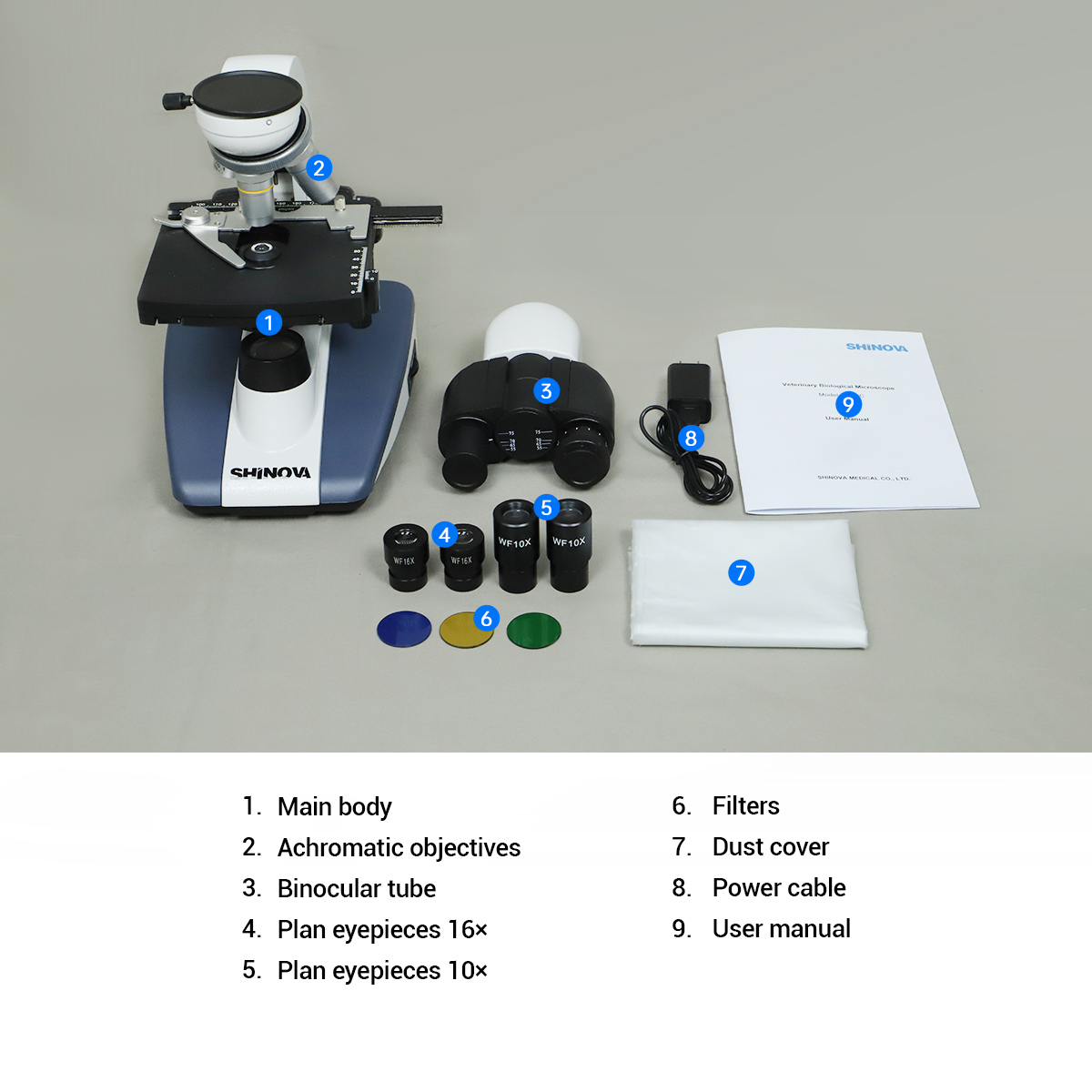

Configurations
1. Microscope main body 1 unit2. Achromatic objectives: 4×, 10×, 40×, 100× (oil) 1 pc each3. Binocular tube 1 pc4. Plan eyepieces: 10×, 16× 1 double each5. Filters: blue, yellow, green and frosted glass 1 piece each6. Oil(compounded) 1 bottle7. Alternate halogen lamp 1 pc
